Integrating Runtime Verification into an Automated UAS Traffic Management System

Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System" by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

CS_UAS_1

Specification Description

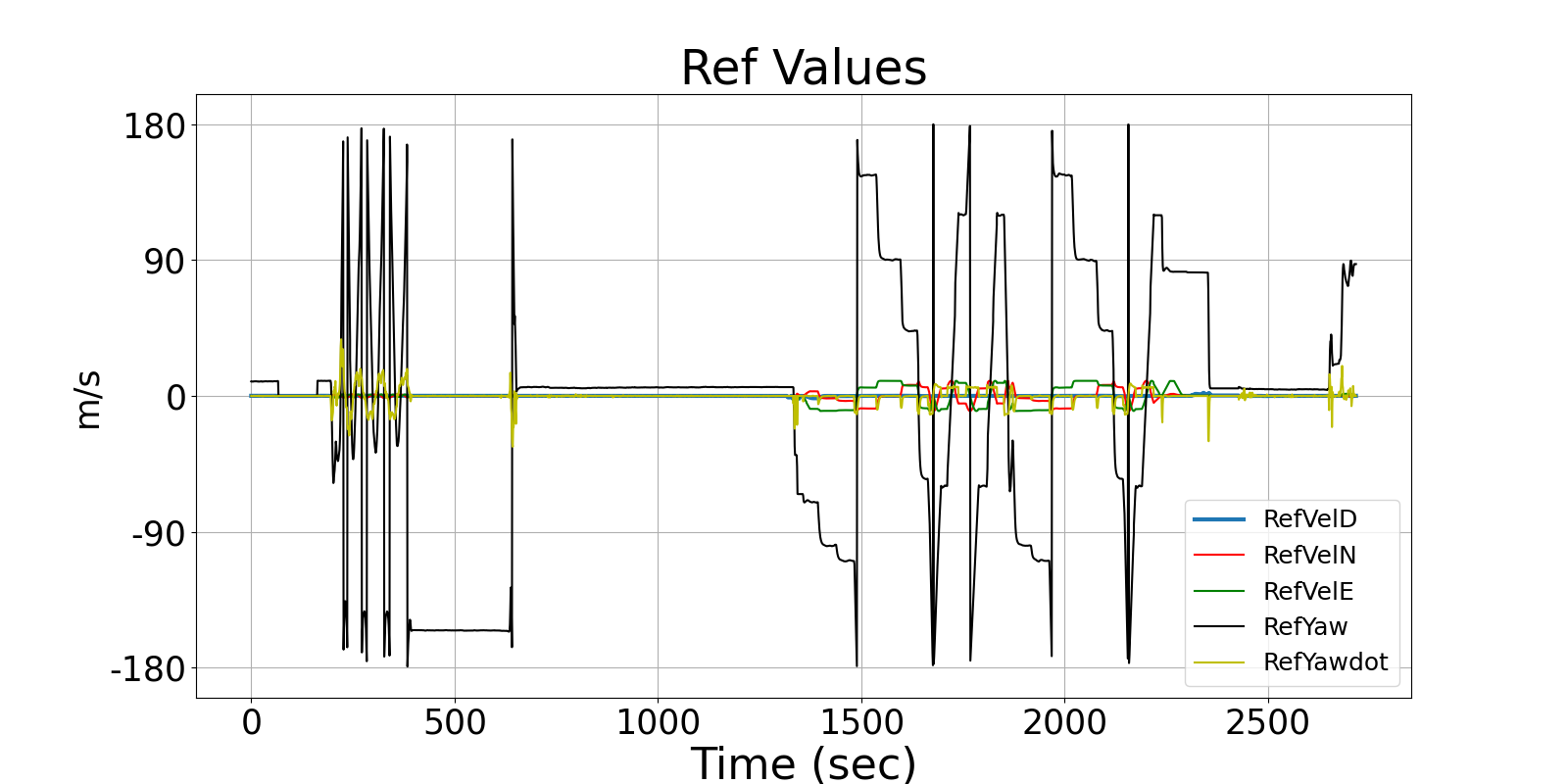

The UAS cmd values RefVelN, RefVelE, RefVelD, RefYaw, and RefYawdot should be 0 when Subphase is Test Actuators or when Phase is in Test at all instances.

Signals Required

RefVelN, RefVelE, RefVelD, RefYaw, RefYawdot, Subphase, Test

Boolean Conversion of Signals to Atomic Inputs

RefVelN_eq_0: RefVelN==0
RefVelE_eq_0: RefVelE == 0
RefVelD_eq_0: RefVelD == 0
RefYaw_eq_0: RefYaw == 0
RefYawdot_eq_0: RefYawdot == 0
Phase_eq_Test: Phase == "Test"
Subphase_eq_TestActuators: Subphase == "Test Actuators"

MLTL Specification

☐[0,M] ((Phase_eq_Test ∨ Subphase_eq_TestActuators) → (RefVelN_eq_0 ∧ RefVelE_eq_0 ∧ RefVelD_eq_0 ∧ RefYaw_eq_0 ∧ RefYawdot_eq_0))

Fault Explanation

UAS is moving when in testing phase or test actuators subphase.

Additional Notes

Based strictly off of the 2018-01-02-telemetry.csv file.

Until such a time that a test flight with the Vapor 55 can be completed, this specification is unable to be fully tested.
