Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System" by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

CS_UAS_4

Specification Description

If a UAS if flying toward as STOP waypoint, it will eventually decelerate.

Signals Required

Subphase, AccD, AccE, AccN

Boolean Conversion of Signals to Atomic Inputs

Subphase_eq_Stop: Subphase == "Stop"
AccD_lt_0: AccD < 0
AccN_lt_0: AccN < 0
AccE_lt_0: AccE < 0

MLTL Specification

Subphase_eq_Stop → ♢[0,M] (AccD_lt_0 ∧ AccN_lt_0 ∧ AccE_lt_0)

Fault Explanation

UAS is not slowing down while heading to a stop.

Additional Notes

Until such a time that a test flight with the Vapor 55 can be completed, this specification is unable to be fully tested.

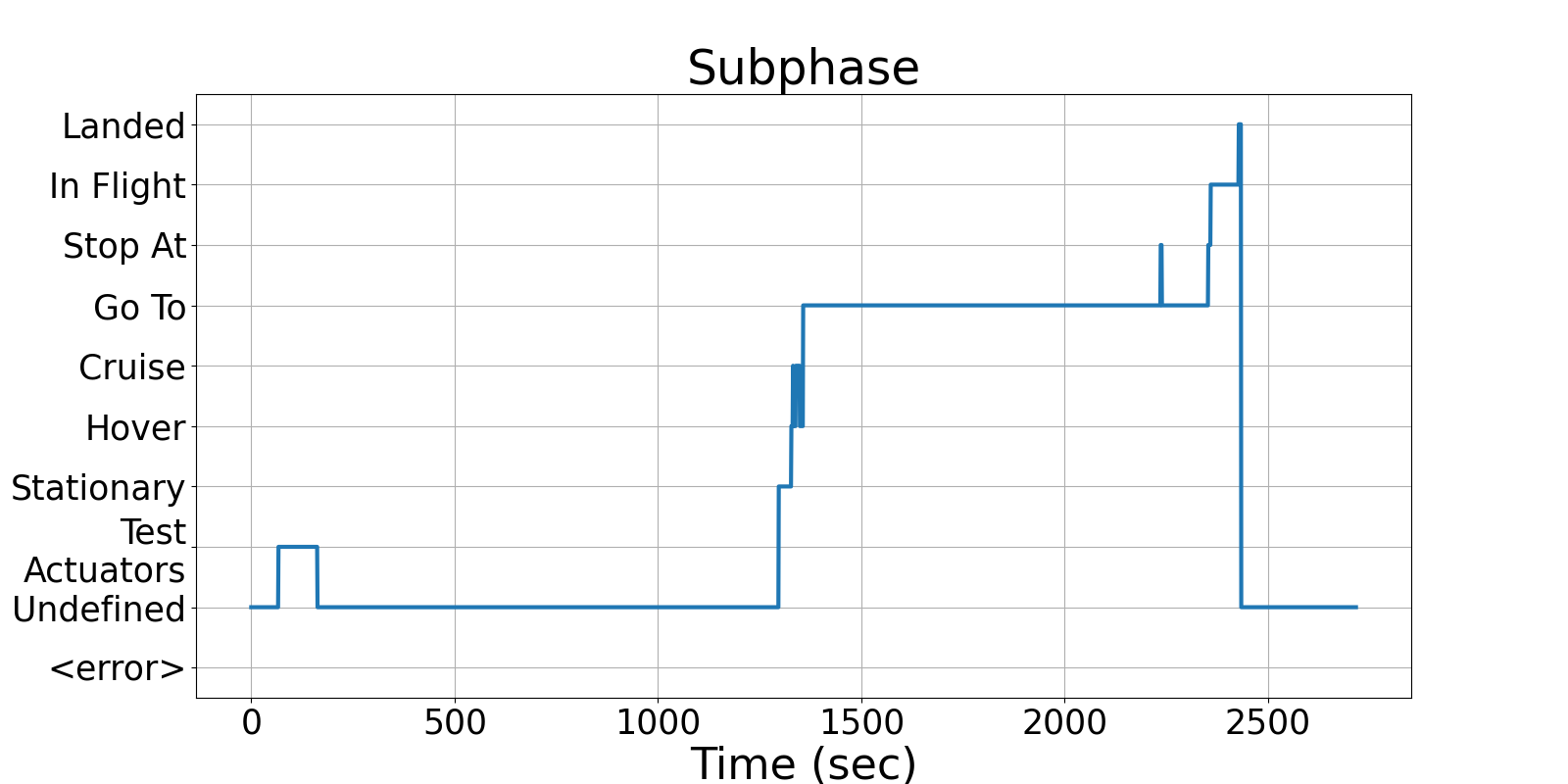

Figures
