OR_UAS_12

Specification Description

The magnitude of the individual position components (PosN, PosE, PosD) will be bounded between 0 and DIST_OR_MAX, but if it is not, allow 3 timesteps to recover.

Signals Required

PosN, PosE, PosD

Boolean Conversion of Signals to Atomic Inputs

PosMag = √(PosN² + PosE² + PosD²)
PosMag_lt_MAX: PosMag < DIST_OR_MAX

MLTL Specification

¬☐[0,3] ¬(PosMag_lt_MAX)

Fault Explanation

Position magnitude is exceeding flight bounds

Additional Notes

DIST_OR_MAX given in data sheet as 8 km

Figures

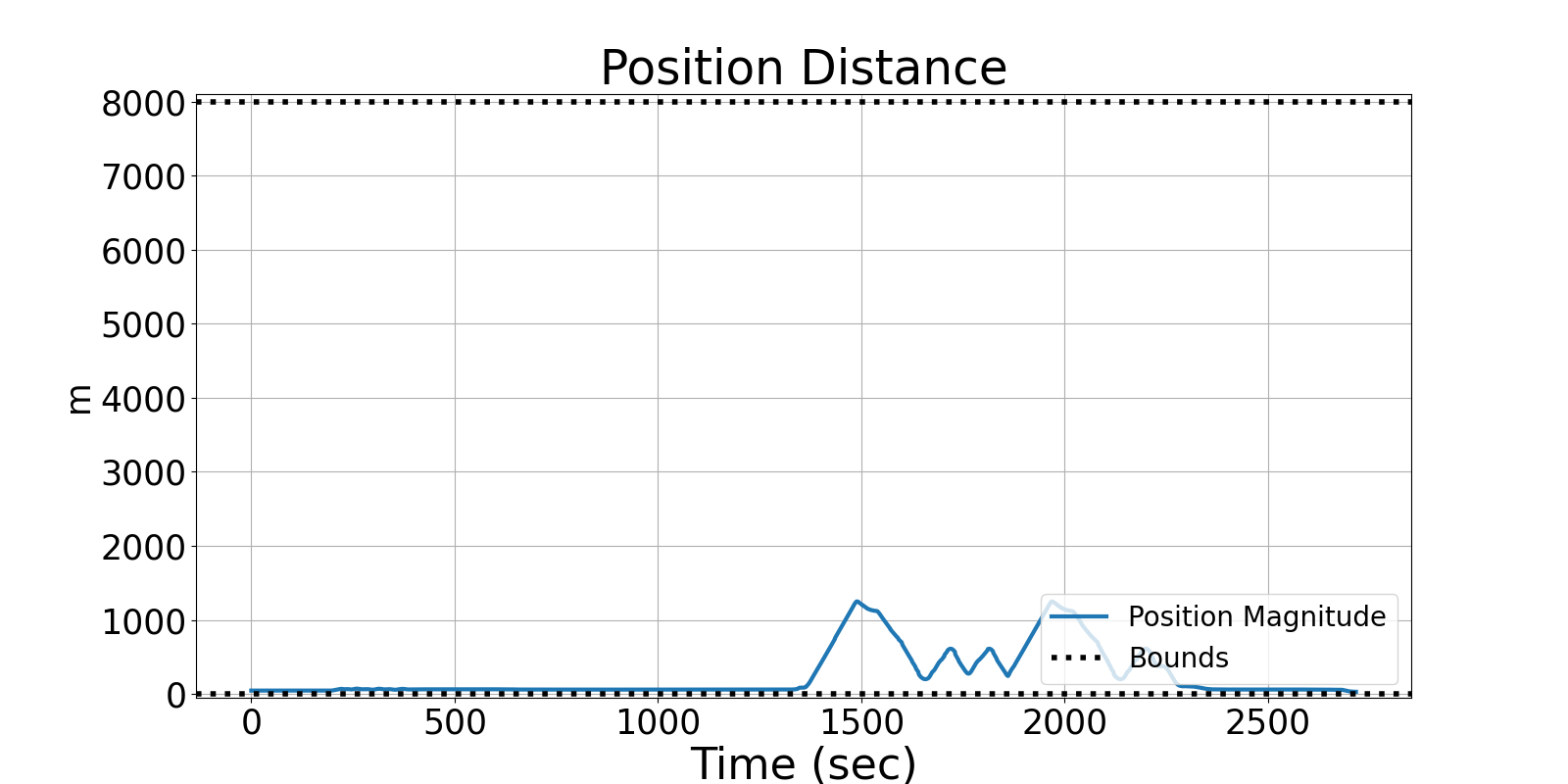

Figure 1: Distance the Vapor is from the GCS.

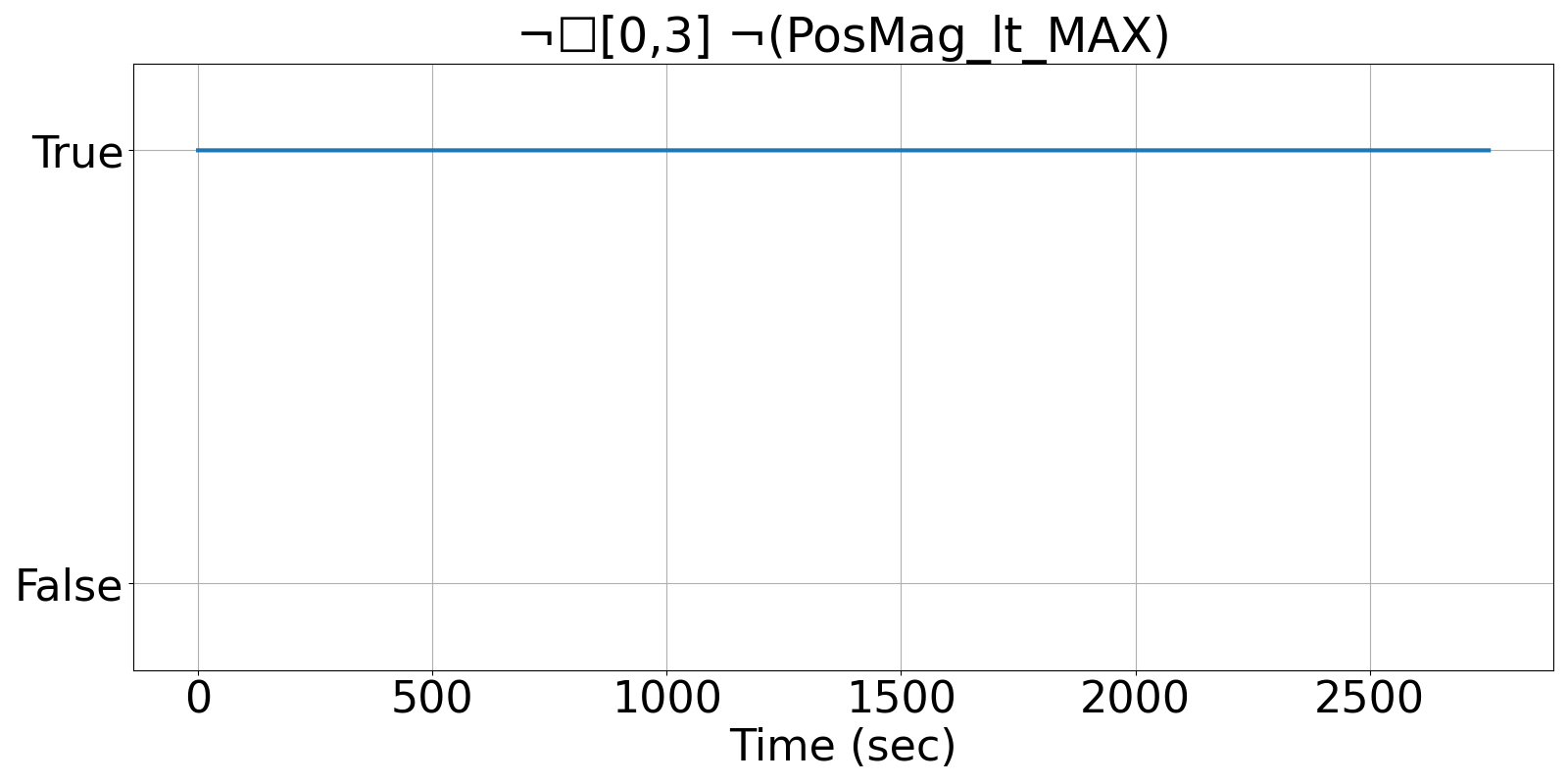

Figure 2: R2U2's output of OR_UAS_12, showing that the Vapor never exceeded the flight bounds.

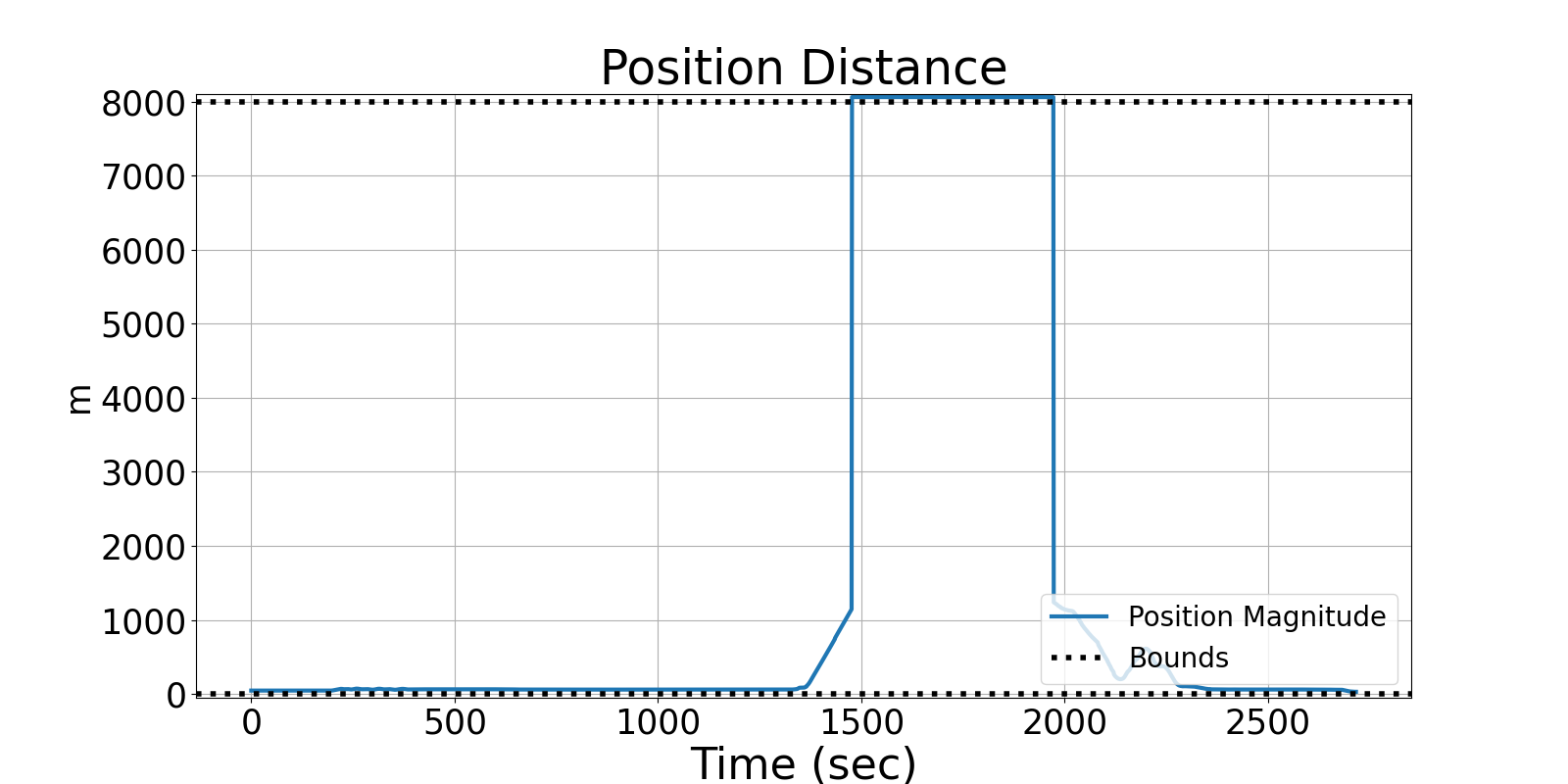

Figure 3: Injected fault, so the distance exceeds the upper bound.

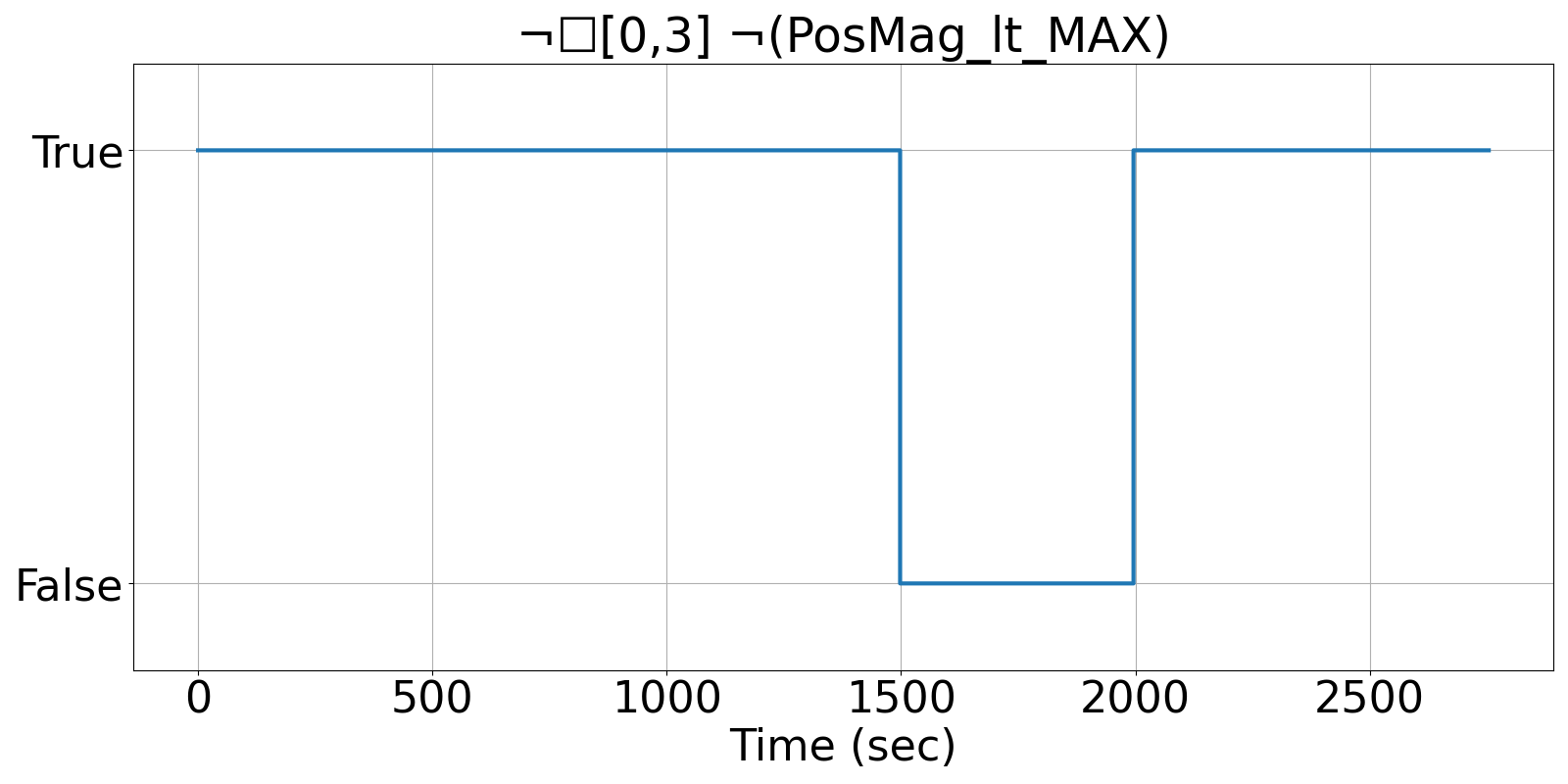

Figure 4: R2U2's output showing it deteced the injected fault and returned false.
