OR_UAS_2

Specification Description

The Roll measurement will be bounded between -45 and 45 degrees, but if it exceeds it, allow 3 timesteps to recover.

Signals Required

Roll

Boolean Conversion of Signals to Atomic Inputs

Roll_geq_45: Roll ≥ -45
Roll_leq_45: Roll ≤ 45

MLTL Specification

¬☐[0,3] ¬(Roll_geq_45 ∧ Roll_leq_45)

Fault Explanation

Roll is exceeding flight bounds

Additional Notes

45 degrees is highly conservative

Figures

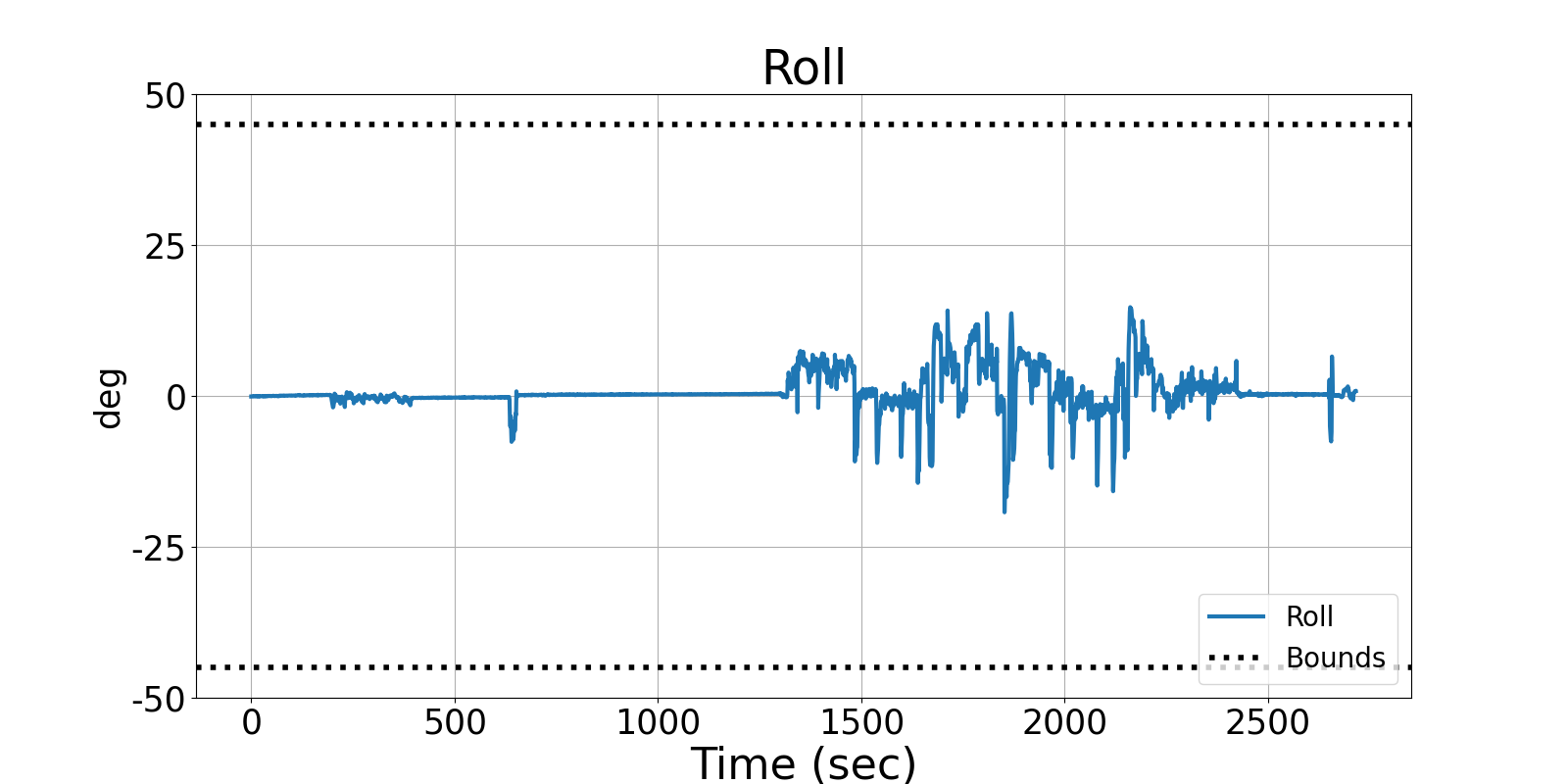

Figure 1: Roll in degrees the Vapor 55 experiences.

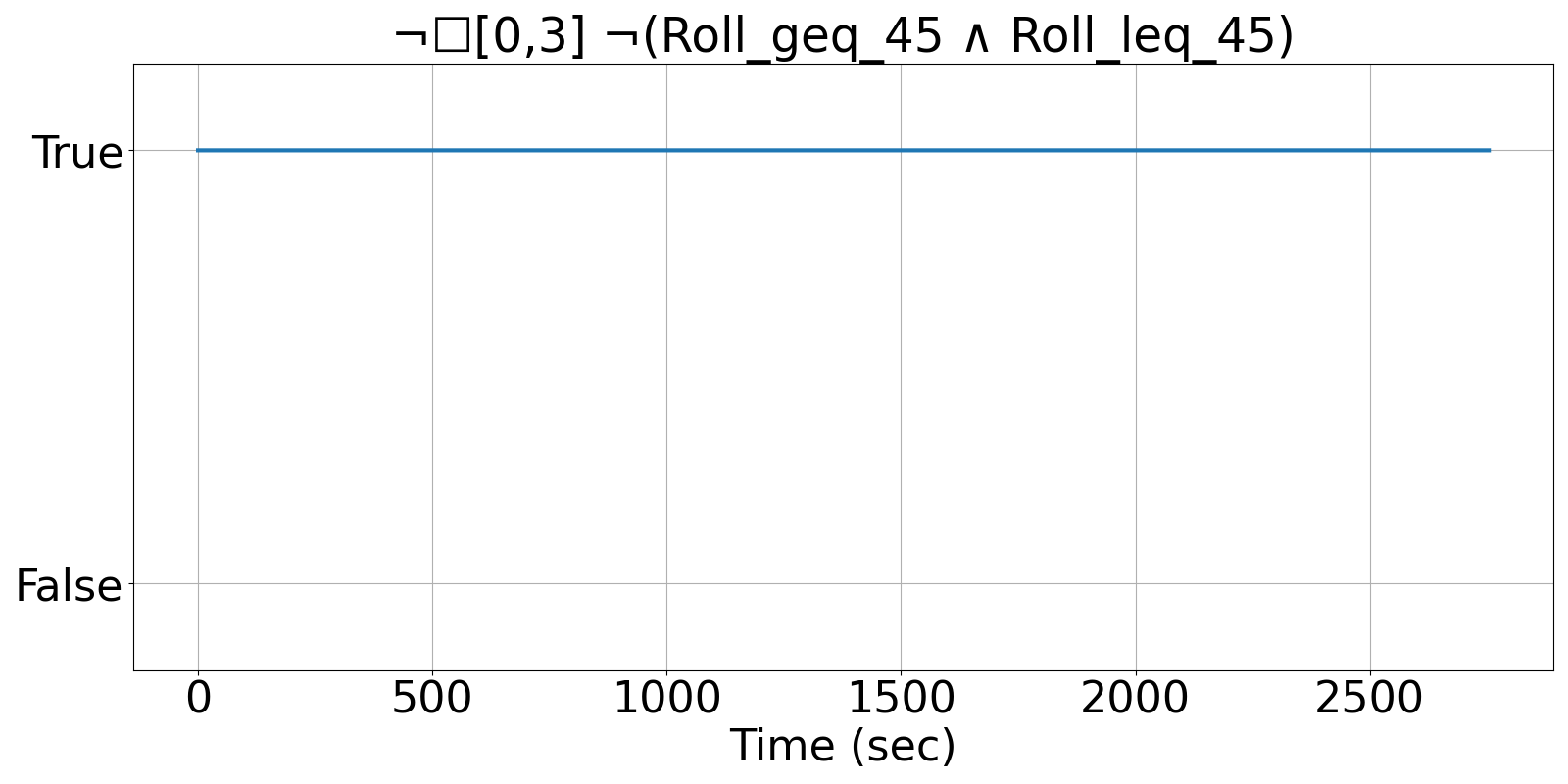

Figure 2: R2U2's output of OR_UAS_2, confirming the roll stayed within bounds the entire time.

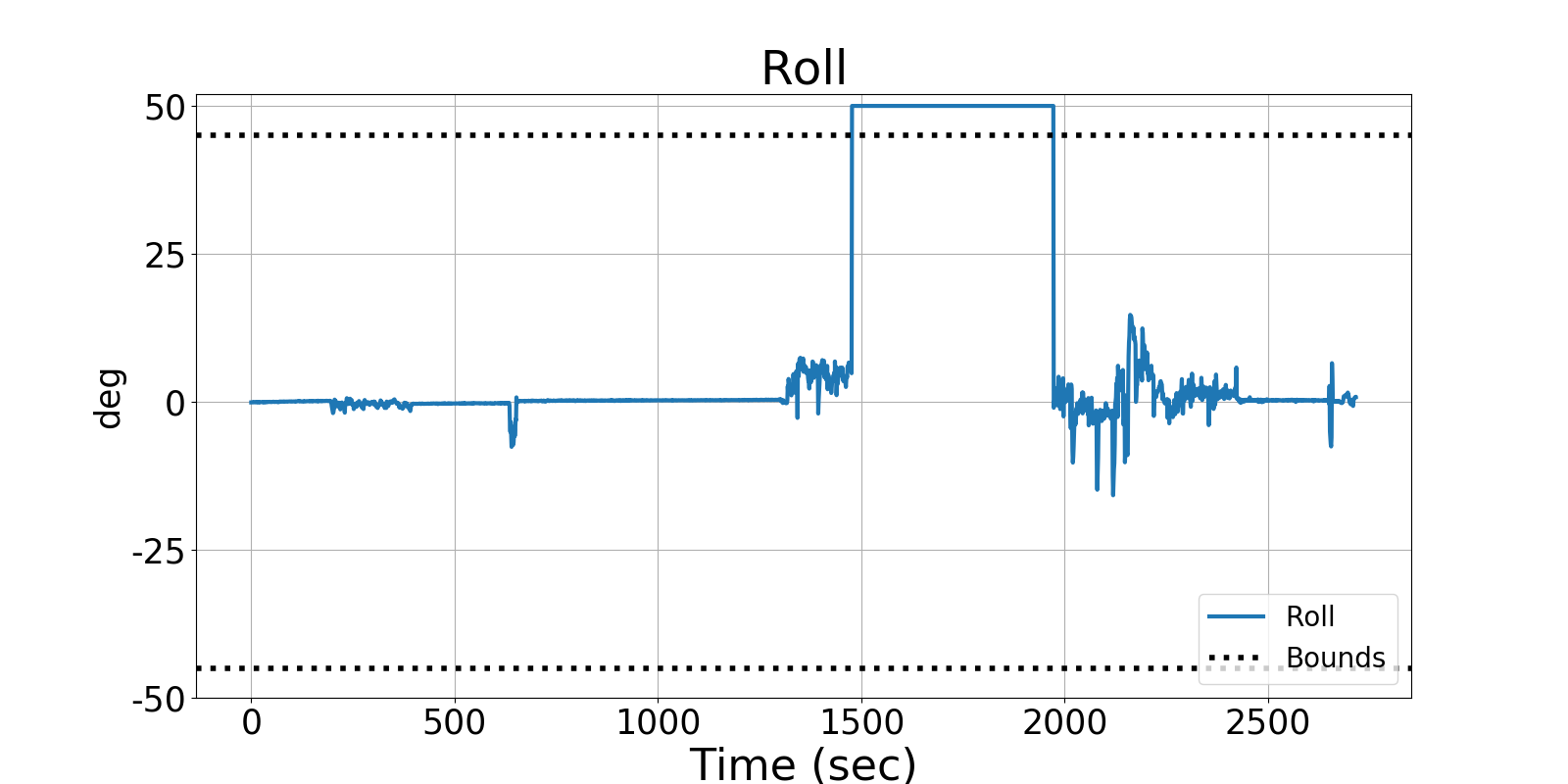

Figure 3: Graph showing an injected fault into Roll, pushing it above the upper bound.

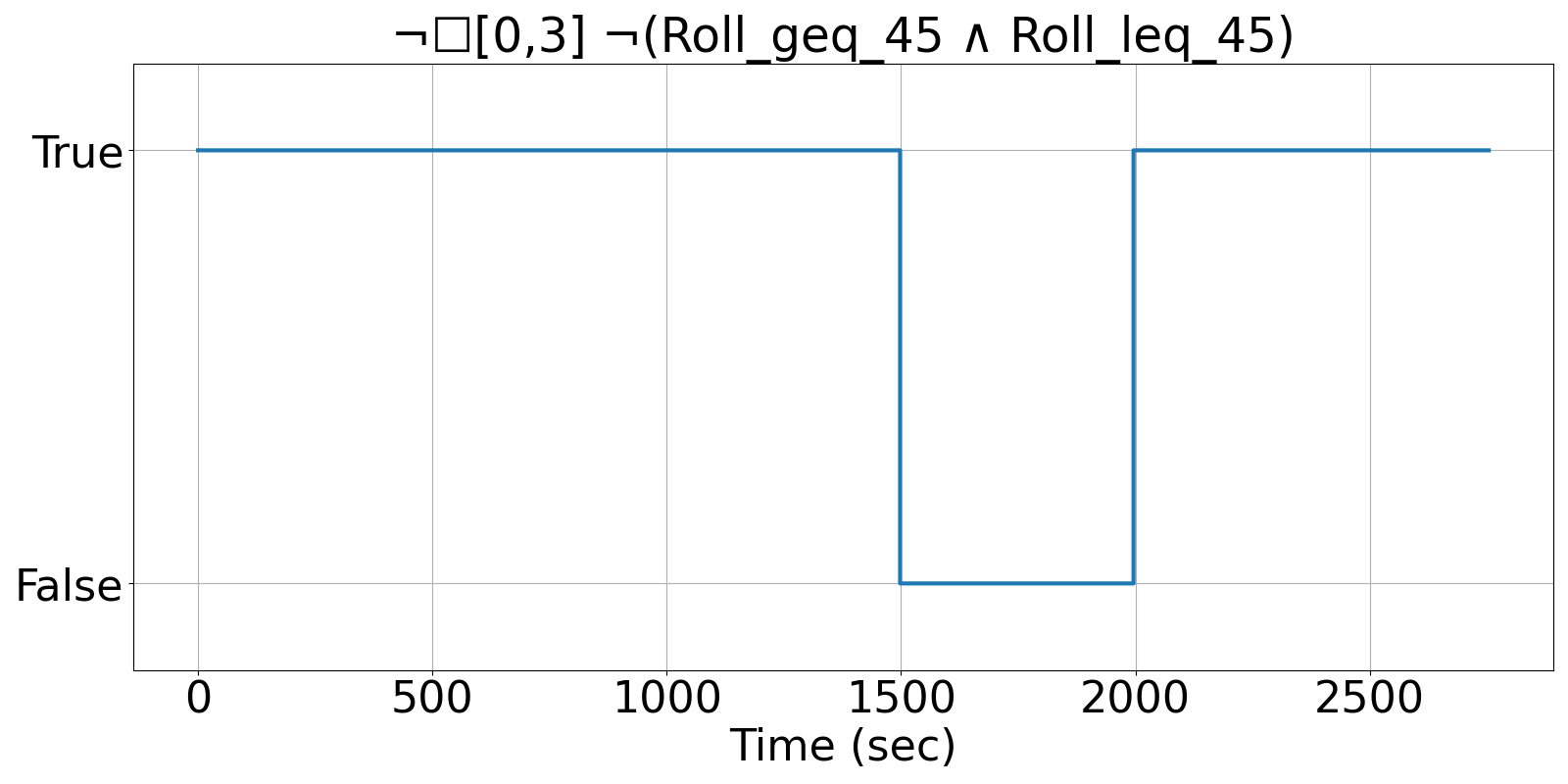

Figure 4: R2U2's output with the fault, showing that it catches the injected fault.
