OR_UAS_4

Specification Description

The Altitude (Alt in AGL) will be bounded by ALT_OR_MAX but if it exceeds, allow 3 timesteps to recover.

Signals Required

Alt

Boolean Conversion of Signals to Atomic Inputs

Alt_leq_MAX: Alt ≤ ALT_OR_MAX

MLTL Specification

¬☐[0,3] ¬(Alt_leq_MAX)

Fault Explanation

Altitude is exceeding maximum altitude

Additional Notes

The altitude must be below a certain threshold and above ground.

Figures

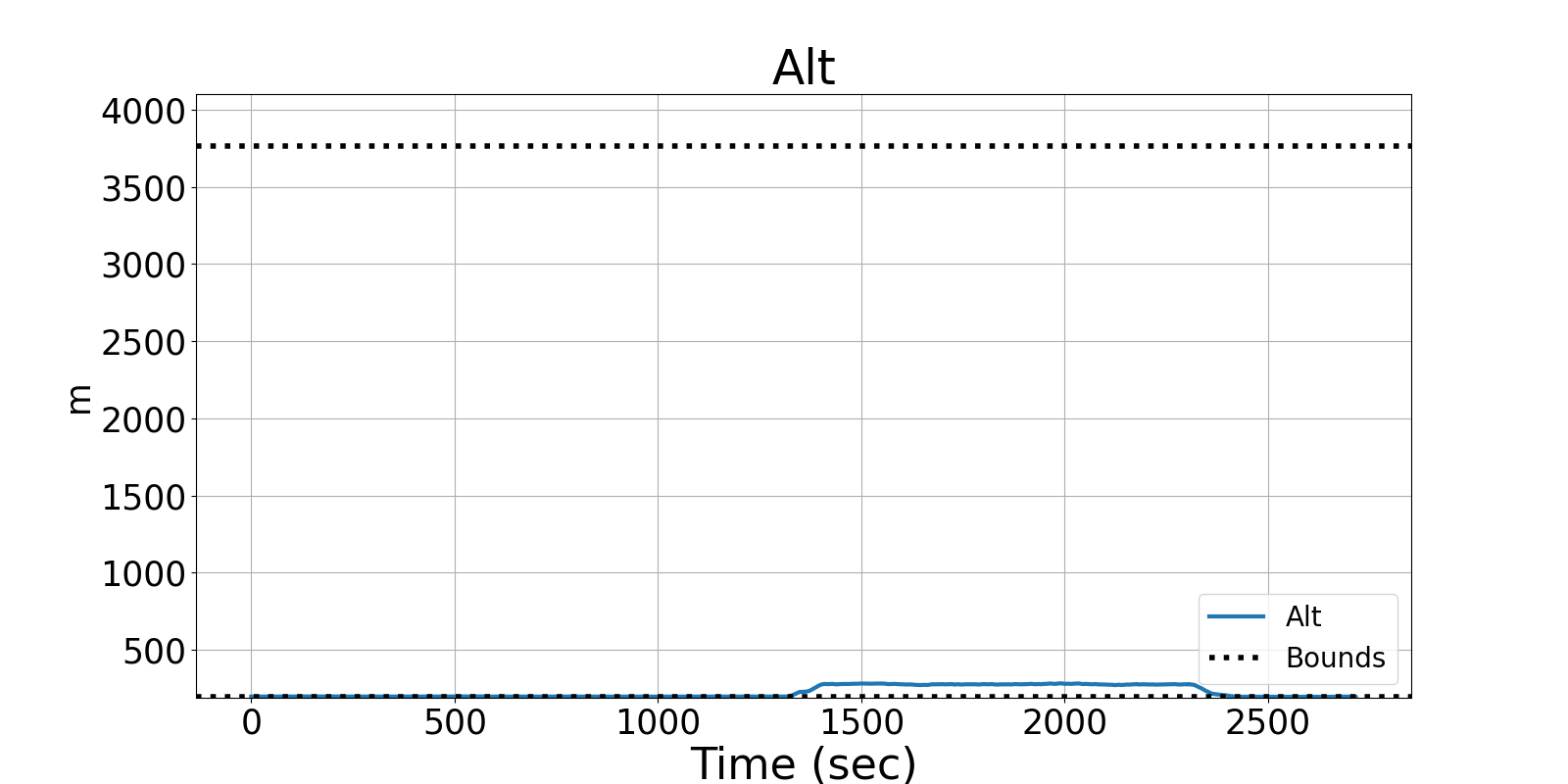

Figure 1: Altitude of the Vapor 55 in meters.

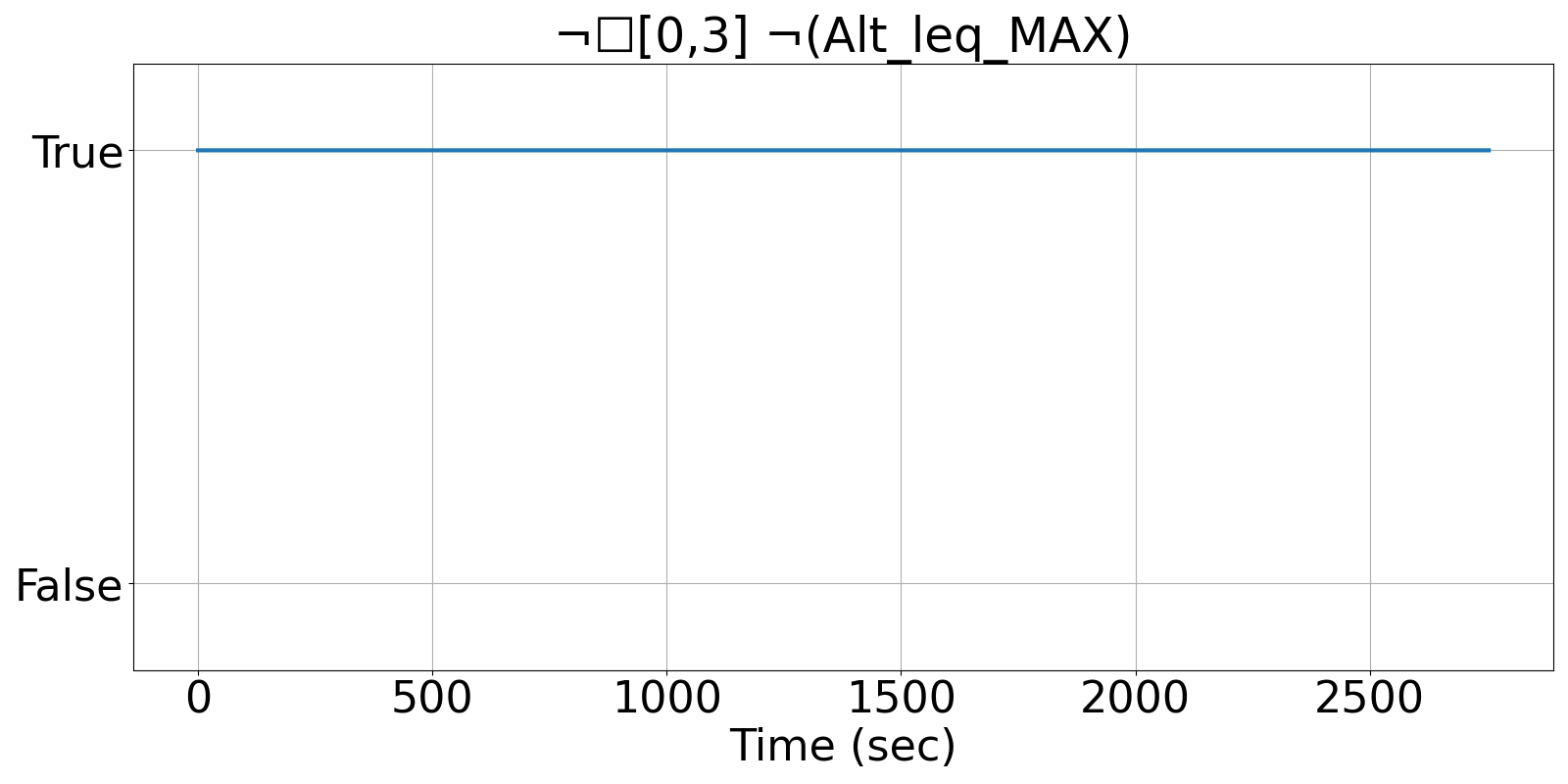

Figure 2: R2U2's output of OR_UAS_4, showing the altitude remained inside bounds the entire time.

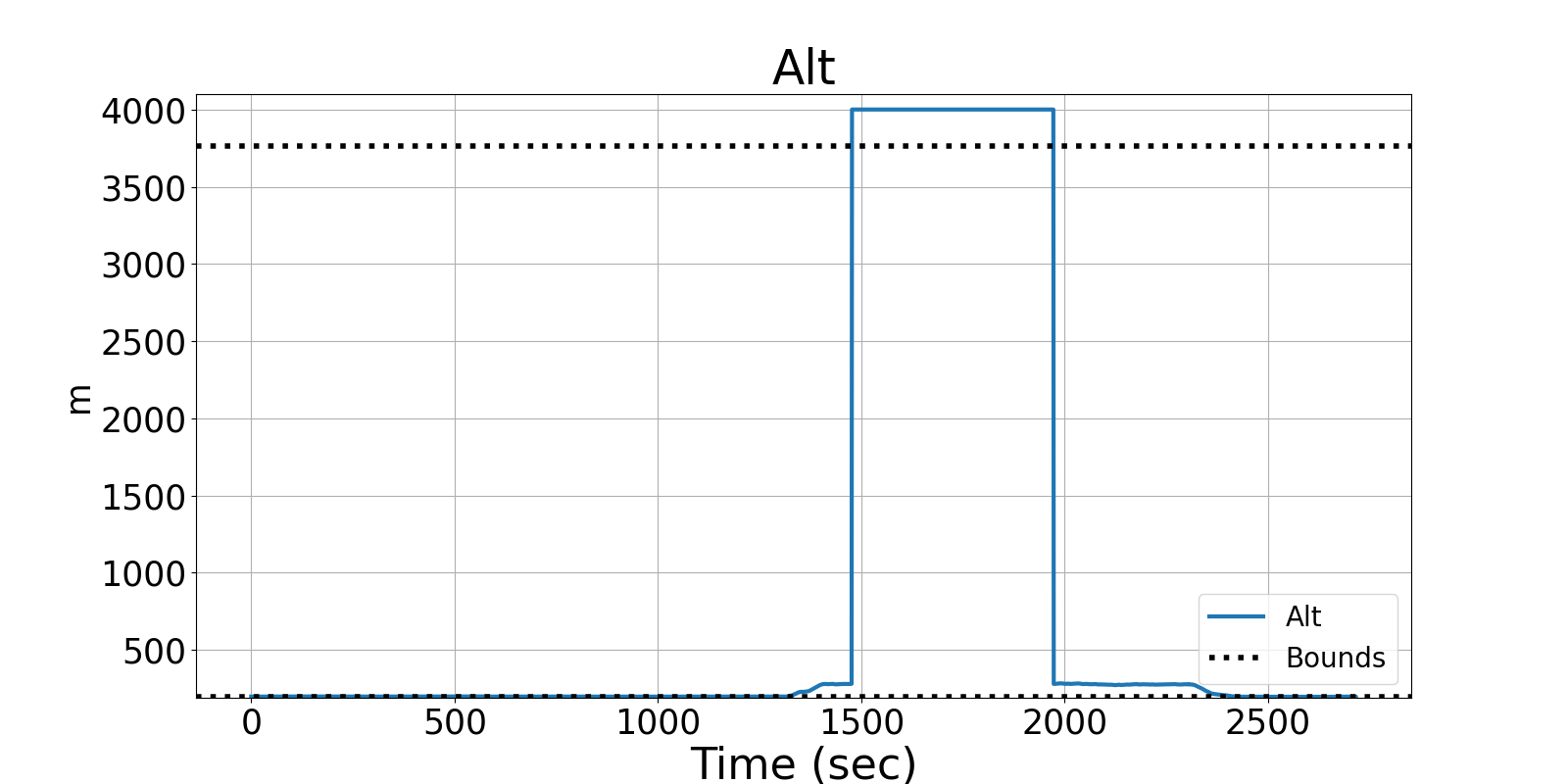

Figure 3: Injected fault into Altitude, exceeding the upper bound.

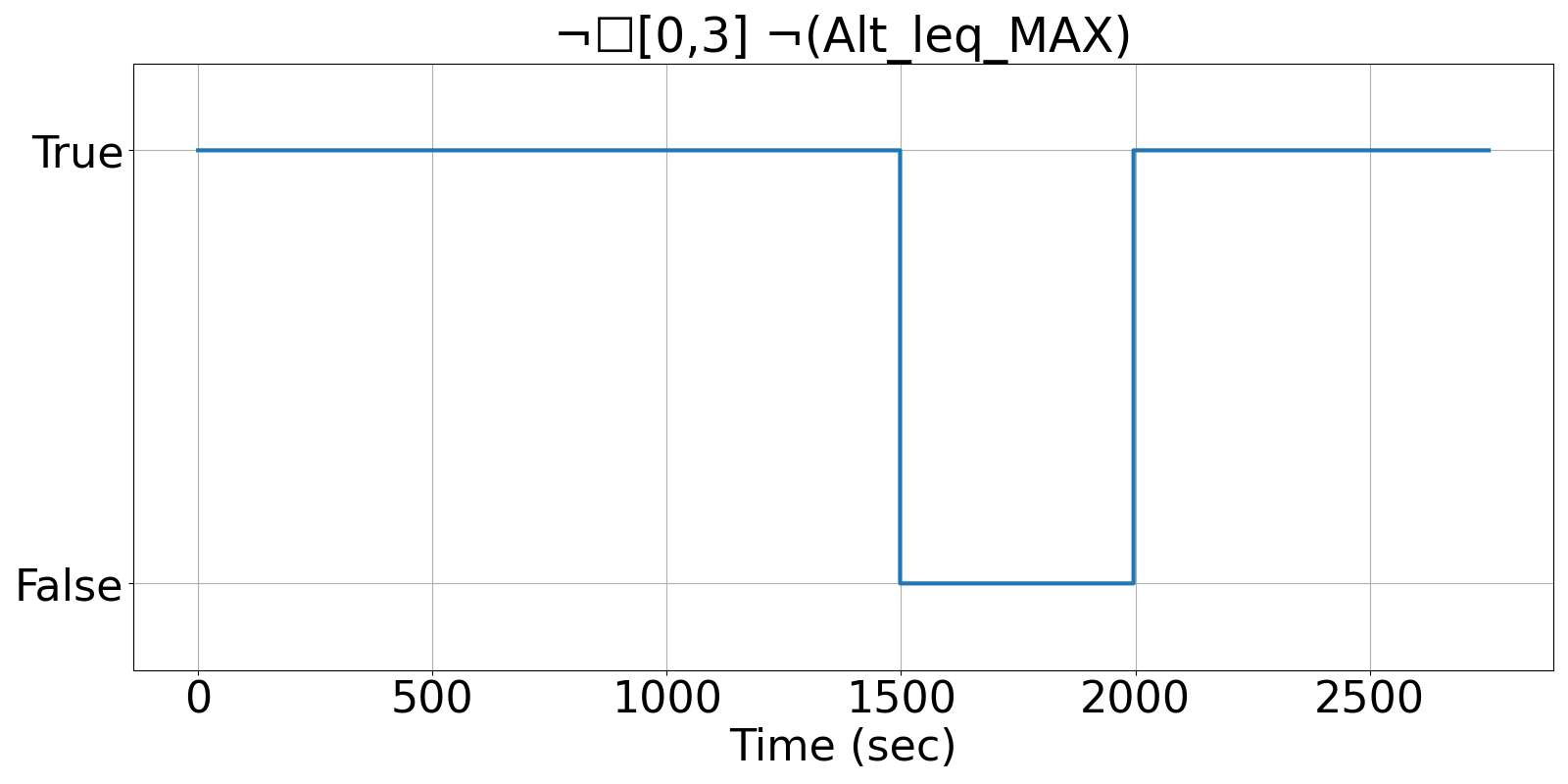

Figure 4: R2U2's output, showing it caught the fault.
