Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System"
by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

OR_UTM_1

Specification Description

The Status of a flight plan will always be either: ACCEPTED (1), REJECTED (2), or REPLACED (3)

Signals Required

Status

Boolean Conversion of Signals to Atomic Inputs

Status_eq_Valid = 1;
for(i = 0; i < NumUAS; i++)
{
    // if UAS i's Status, an integer, is 1, 2, or 3
    // and the value is not "nan"
    if((Status[i] < 0) || (Status[i] > 3) && (Status[i] == Status[i])
    {
        Status_eq_Valid = 0;
    }
}

MLTL Specification

Original: Status_eq_Valid

Fault Explanation

Flight plan type is not a predefined string: ACCEPTED, REJECTED, or REPLACED

Additional Notes

Figures

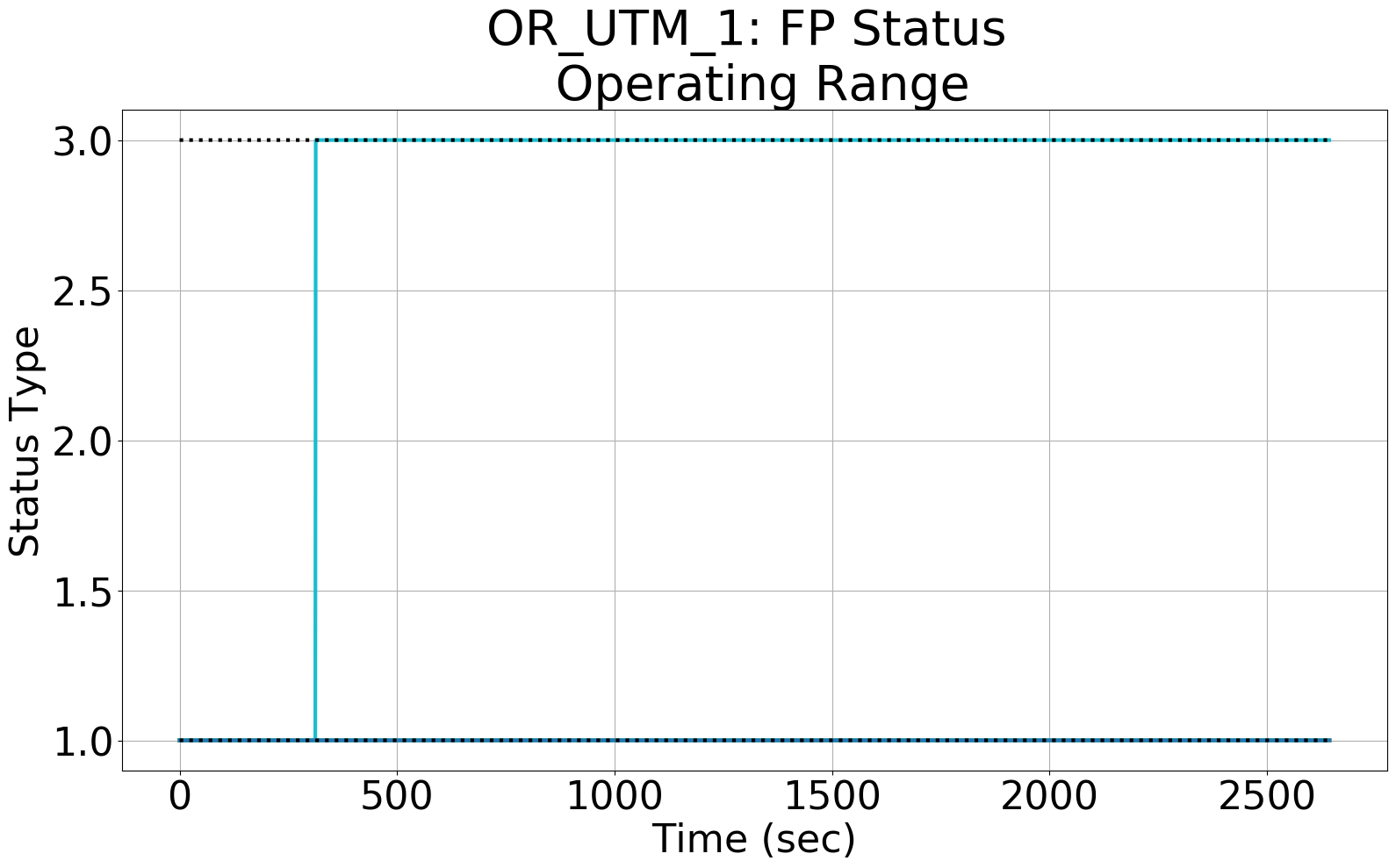

Figure 1: All of the flight plan's status (Status) from each GCS the UTM reads from the operational flight plan datatable.

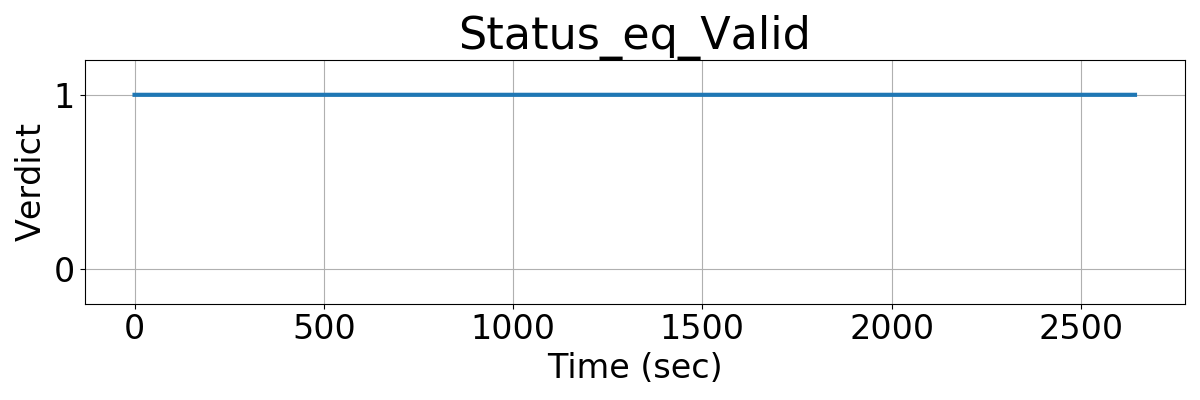

Figure 2: The output of R2U2's monitoring of specification OR_UTM_1, confirming that no flight plan's status (Status) exceeds its operating range.

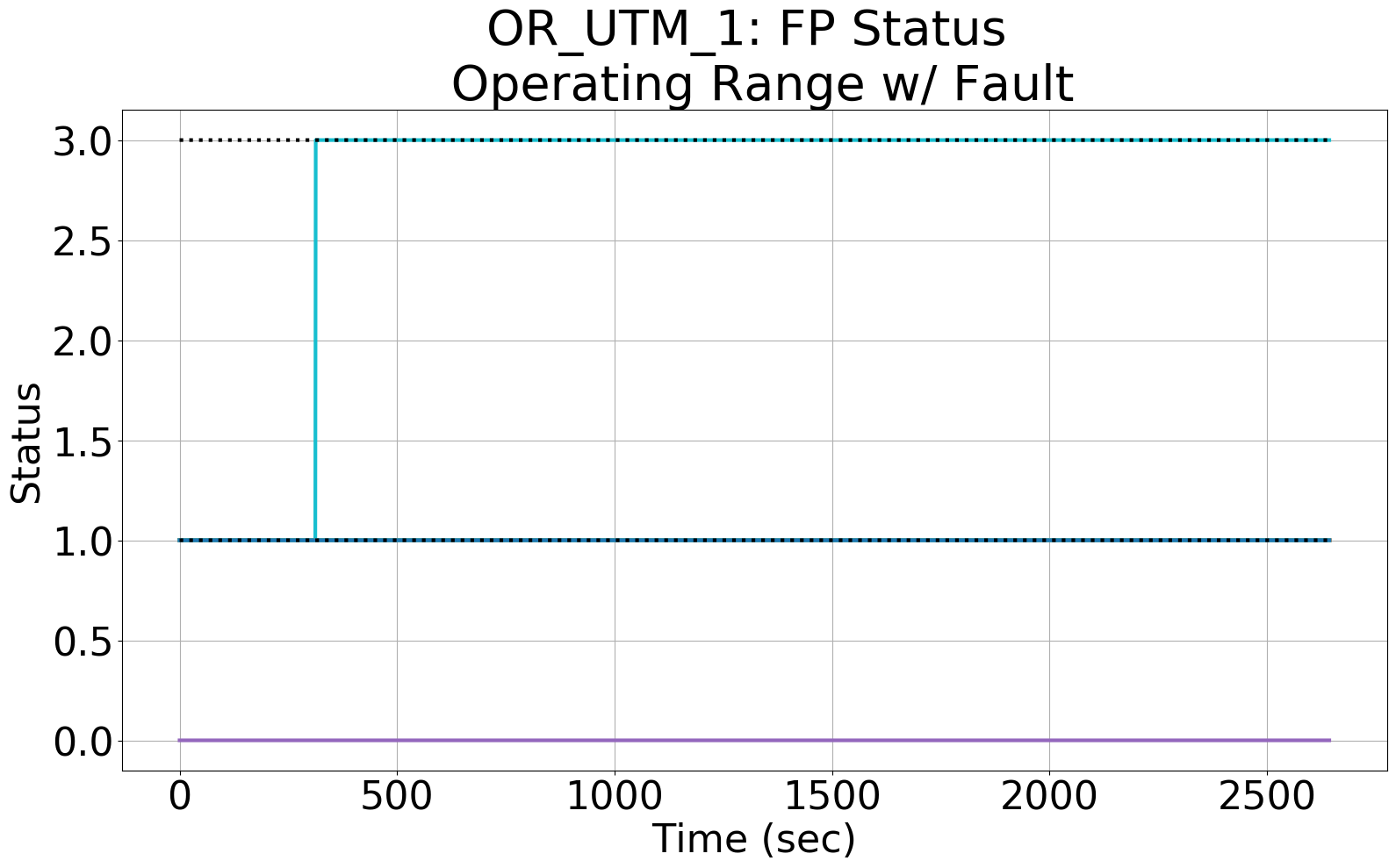

Since Fig. 1 had no flight plans where Status exceeds 1 through 3, we manually injected a fault into a single flight plan (purple).

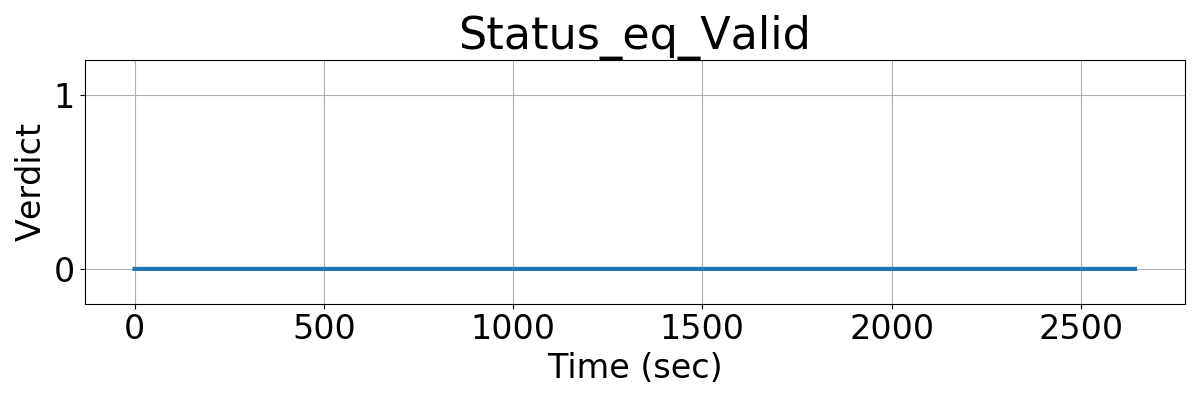

Figure 4: The output of R2U2's monitoring of specification OR_UTM_1, showing that R2U2 catches when the injected fault occurs.
