Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System" by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

OR_UTM_18

Specification Description

A conflict's estimated Start time (conStart) must always be less than the estimated End time (conEnd)

Signals Required

conStart, conEnd

Boolean Conversion of Signals to Atomic Inputs

conStart_leq_conEnd = 1;
for(i = 0; i < NumUAS; i++)
{
    // if UAS i's conStart is less than its conEnd
    // and both values are not "nan"
    if((conStart[i] > conEnd[i]) && (conStart[i] == conStart[i]) && (conEnd[i] == conEnd[i]))
    {
        conStart_leq_conEnd = 0;
    }
}

MLTL Specification

Original: conStart_leq_conEnd

Updated: ☐[0,3] conStart_leq_conEnd

Fault Explanation

Conflicts cannot end before they begin

Additional Notes

Note that several bugs were present in the conflict logic during the December 16th flight test.

(1) The labeling of which UAS are involved in the conflict is incorrect. The logged data shows that UAS 0-3 are involved in conflicts; hwoever, these UAS are not transmitting telemetry during these conflicts. It was discovered that an indexing value was being logged by the UTM instead of the UAS flight plan ID.

(2) There are multiple conflicts detected for the same UAS at the same time, but with different end times. This was due to the jumbing of conStart, conEnd, and conDetect labels within the UTM.

(3) There are several instances where end times preceed the start times, i.e., the difference is negative. Again, this was due to the mislabeling of font face=courier>conStart, conEnd, and conDetect when logging data from the UTM.

Figures

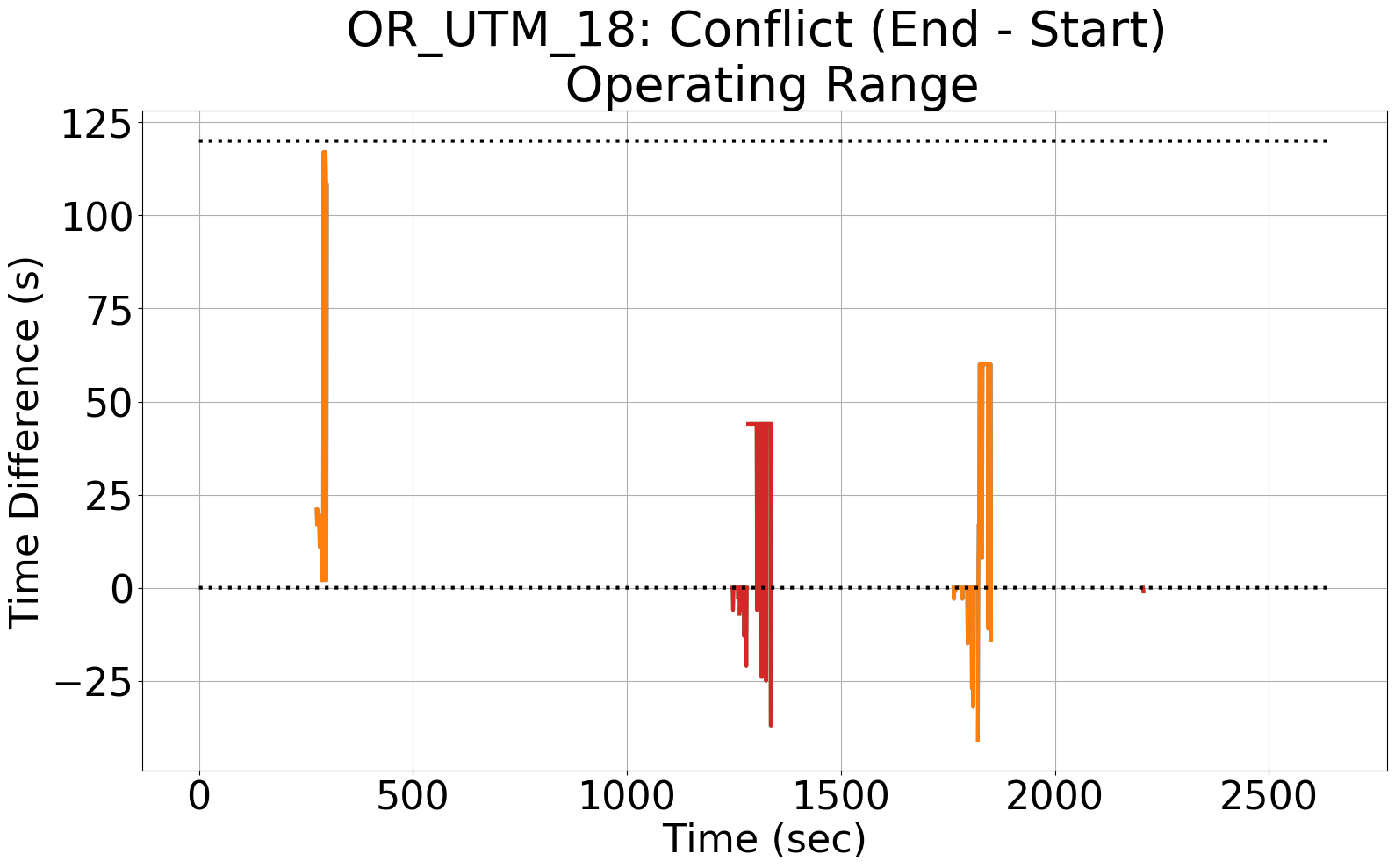

Figure 1: The difference between a conflict's start (conStart) and end (conEnd) times (conEnd - conStart) from each GCS the UTM reads from the operational flight plan datatable. Note that ther are several instances where the conflicts start time is greater than its end time, violating our specification. This was due to several erros within the UTM where the labeling of conStart, conEnd, and conDetect are jumbled.

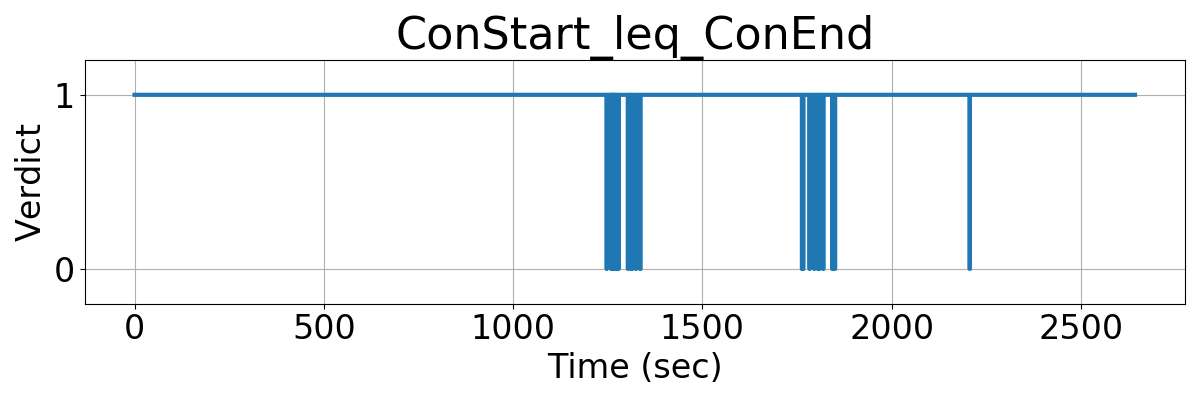

Figure 2: The output of R2U2's monitoring of specification OR_UTM_2, confirming that R2U2 catches when a conflict's start time (conStart) preceeds its end time (conEnd). However, notice that there is bouncing in the initial Boolean specificaiton, which can lead to undesireable false-positive alerts.

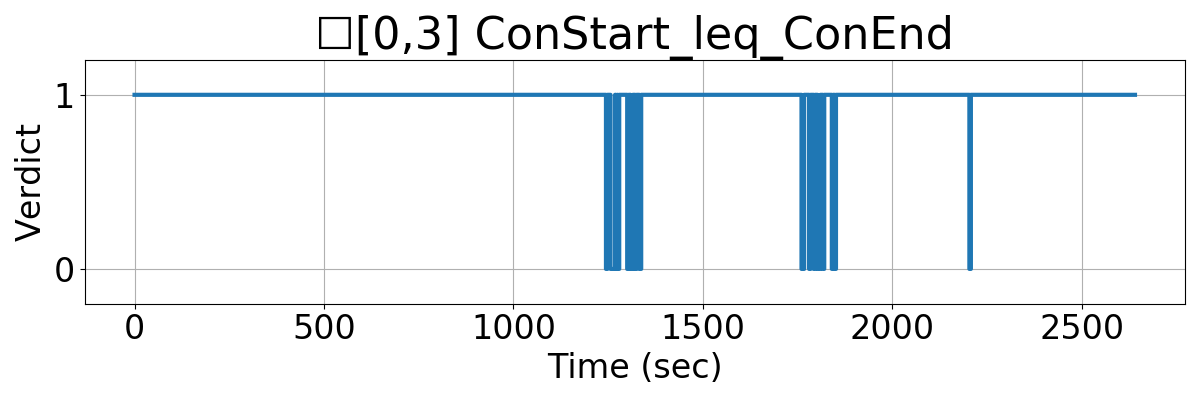

Figure 3: The output of R2U2's monitoring of the updated specification OR_UTM_18, showing that R2U2's output still bounces, even with a "☐[0,3]" temporal operator.
