Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System" by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

OR_UTM_3

Specification Description

The Start time of any flight plan should be greater than the Time_Filed of the flight plan

Signals Required

Start, Time_Filed

Boolean Conversion of Signals to Atomic Inputs

Start_geq_TimeFiled = 1;
for(i = 0; i < NumUAS; i++)
{
    for(j = 0; j < NumWp[i]; j++)
    {
        // if UAS i's Start is less than its End
        // and both values are not "nan"
        if((Start[i] > Time_Filed[i][j]) && (Start[i] == Start[i]) && (Time_Filed[i][j] == Time_Filed[i][j]))
        {
            Start_geq_TimeFiled = 0;
        }
    }
}

MLTL Specification

Original: Start_geq_TimeFiled

Fault Explanation

You cannot file a flightplan that started in the past

Additional Notes

The UTM's scenario was developed so that the actual Vapor 55's flight was 20 minutes into the 50 minute scenario. Due to practical airstrip considerations, the Vapor 55 could not sit on the runway while waiting for the simulated flights to complete. Thus, the actual time the UTM started was around 18 minutes into the 50 minute scenario. So the UTM did see, and incorrectly approve of, flight plans that had started (and mostly ended) in the past.

Figures

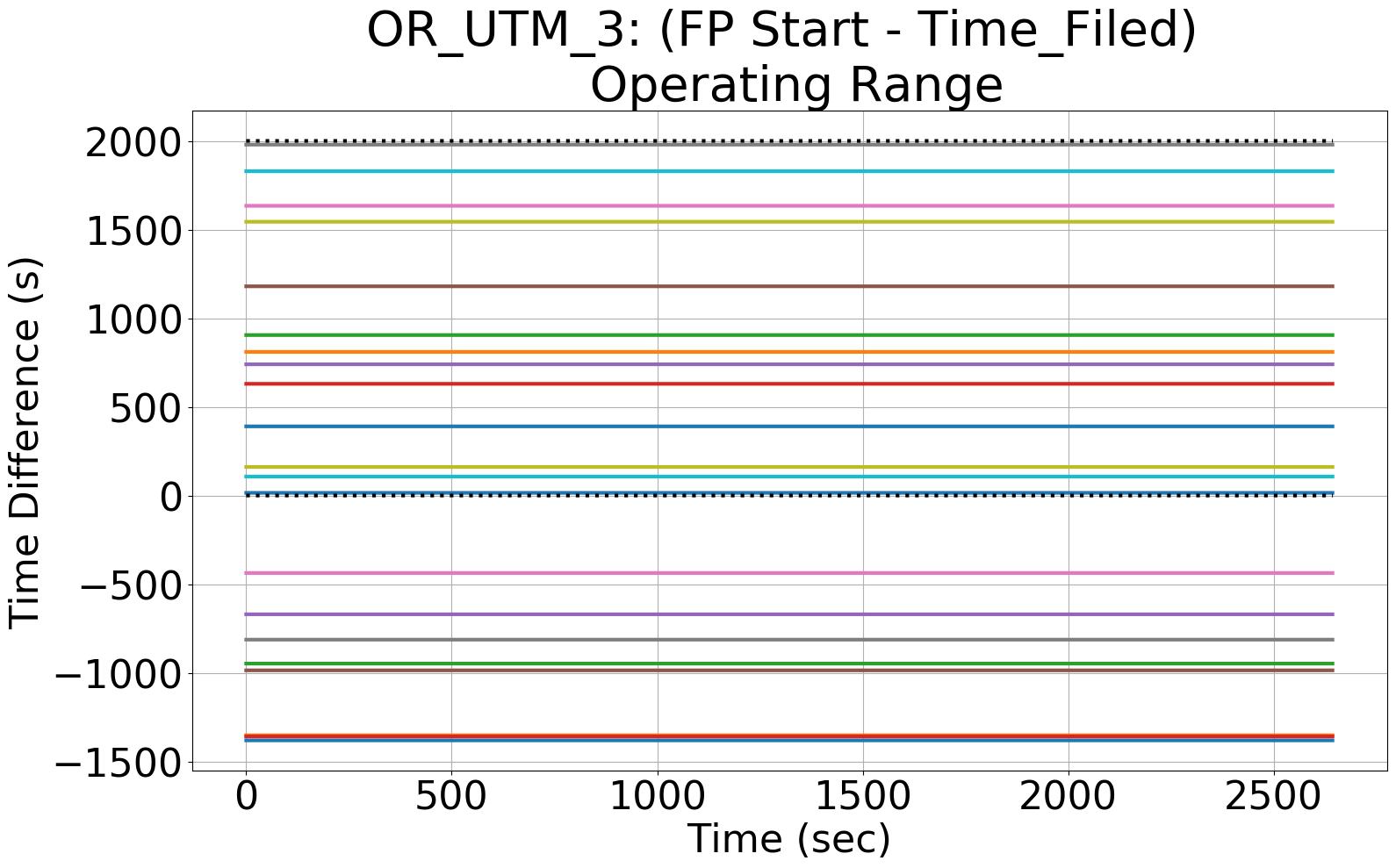

Figure 1: The difference between a flight plan's start (Start) and filed (Time_Filed) times (Start - Time_Filed) from each GCS the UTM reads from the operational flight plan datatable. Note that there are 7 flight plans that violate this specification. This was due to shifting the scenario's start time to accomodate the real test flight.

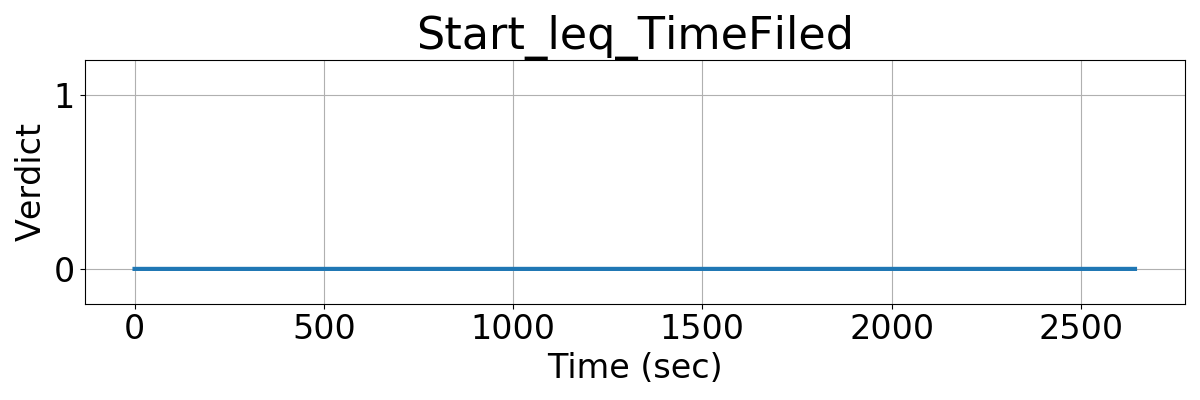

Figure 2: The output of R2U2's monitoring of specification OR_UTM_3, confirming that at least one flight plan is invalid, i.e., its start time is in the past.
