Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System"
by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

OR_UTM_6

Specification Description

All altitude (fpAlt) waypoints of any UAS's telemetry data will be bounded between 0.0 and ALT_UB.

Signals Required

fpAlt

Boolean Conversion of Signals to Atomic Inputs

fpAlt_leq_AltUB = 1;
for(i = 0; i < NumUAS; i++)
{
    // if UAS i's fpAlt is greater than the upper bounded
    // and the value is not "nan"
    for(j = 0; j < NumWps[i]; j++)
    {
        if((fpAlt[i,j] > AltUB) && (fpAlt[i,j] == fpAlt[i,j])
        {
            fpAlt_leq_AltUB = 0;
        }
    }
}
fpAlt_geq_AltLB = 1;
for(i = 0; i < NumUAS; i++)
{
    // if UAS i's fpAlt is less than the lower bounded
    // and the value is not "nan"
    for(j = 0; j < NumWps[i]; j++)
    {
        if((fpAlt[i,j] < AltLB) && (fpAlt[i,j] == fpAlt[i,j])
        {
            fpAlt_geq_AltLB = 0;
        }
    }
}

MLTL Specification

Original: fpAlt_leq_AltLB ∧ fpAlt_geq_AltLB

Fault Explanation

Any waypoint from the flight plan should be within the UTM's airspace

Additional Notes

Figures

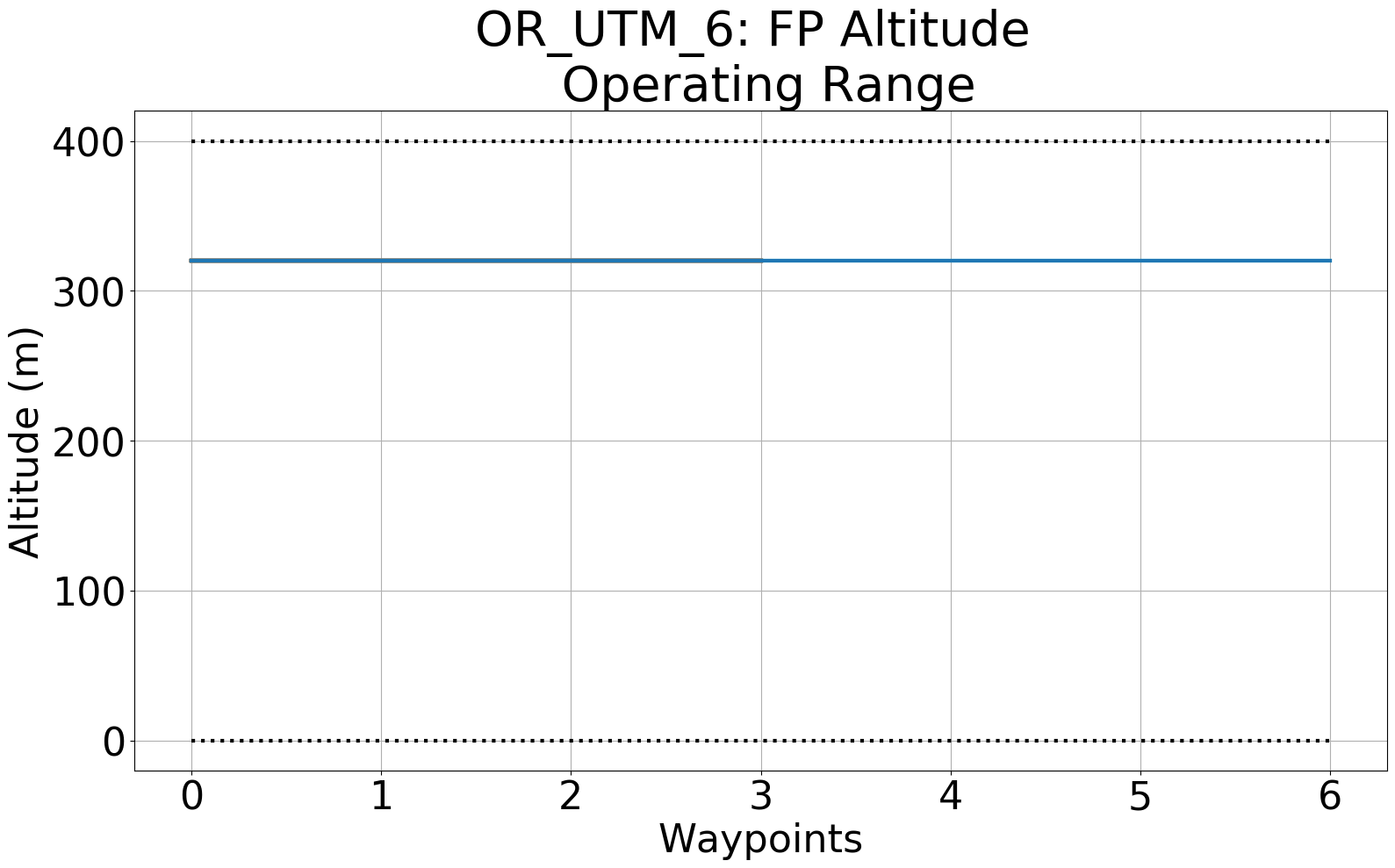

Figure 1: All of the flight plan's altitude waypoints (fpAlt) from each GCS the UTM reads from the waypoint flight plan datatable.

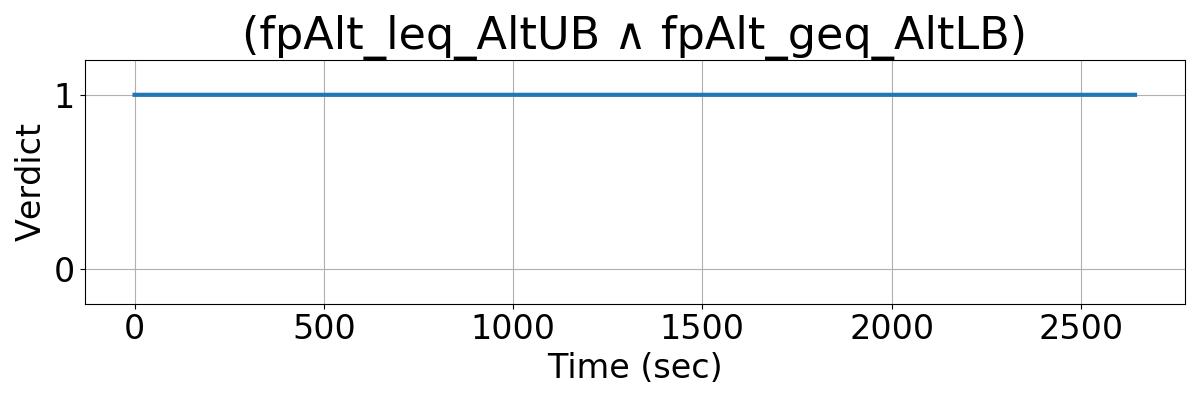

Figure 2: The output of R2U2's monitoring of specification OR_UTM_6, confirming that no UAS exceeds its operating range.

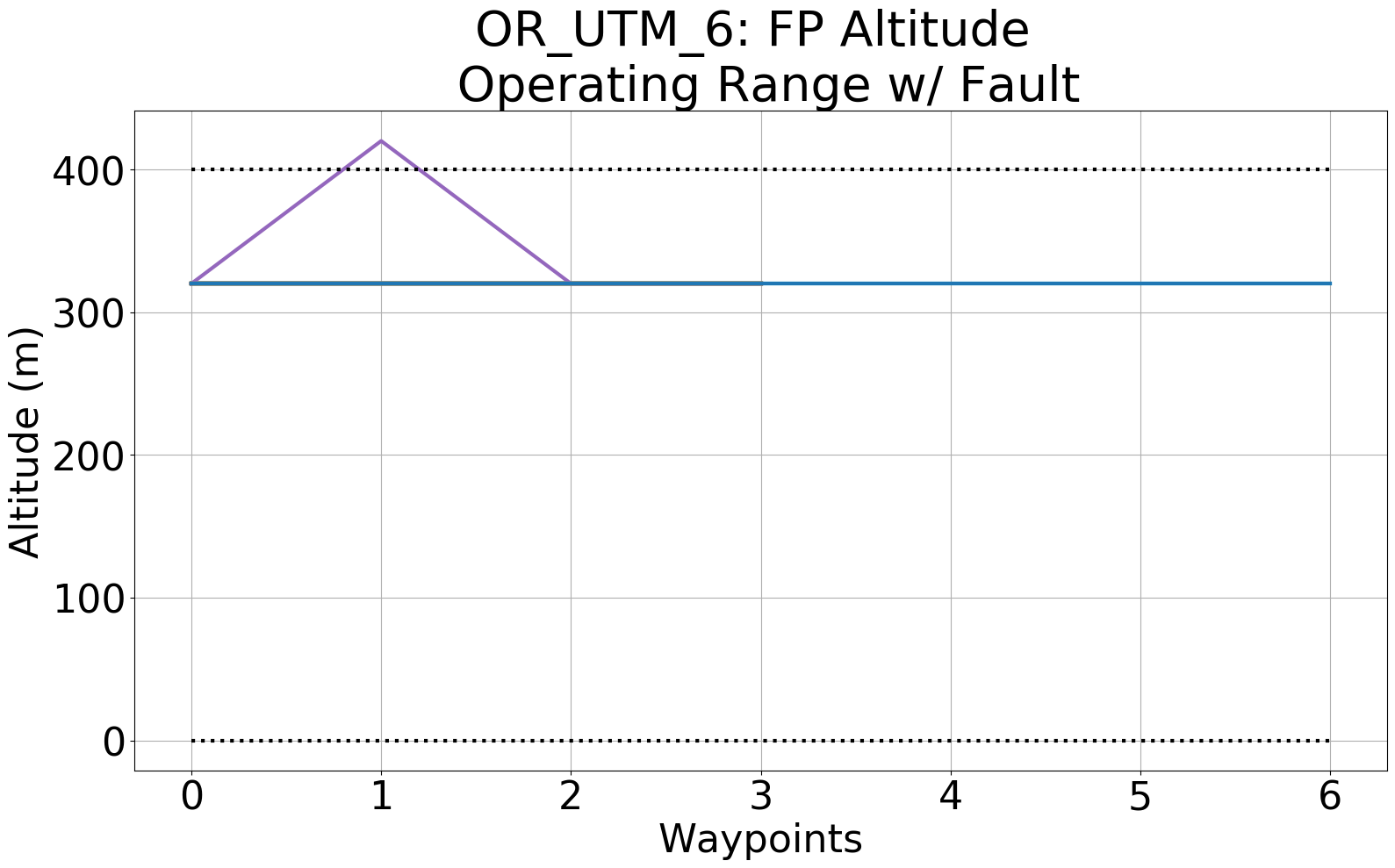

Figure 3: Since Fig. 1 had no fpAlt inputs that exceeded AltLB or AltUB, we manually injected a fault into a single UAS (purple).

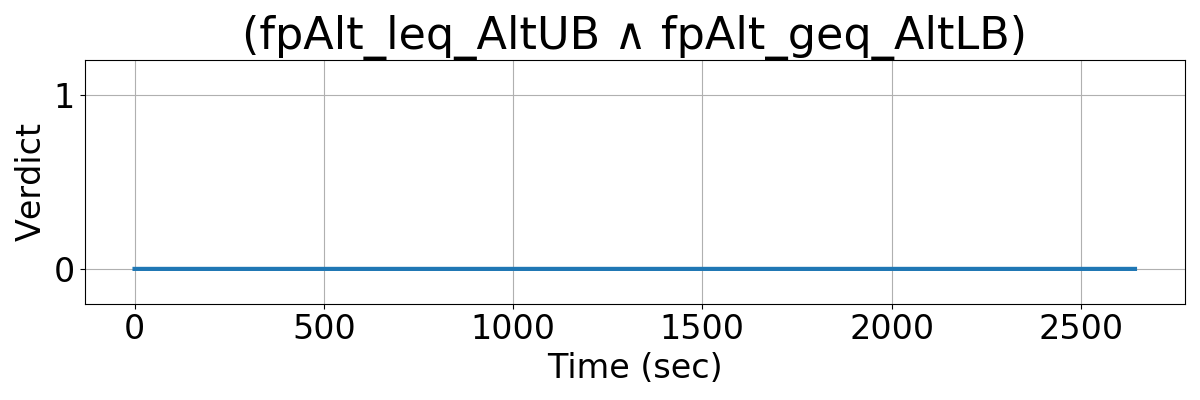

Figure 4: The output of R2U2's monitoring of specification OR_UTM_6, showing that R2U2 catches when the injected fault occurs.
