Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System" by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

OR_UTM_7

Specification Description

The Phase of any flight plan must be either: (1) START, (2) STOP, (3) HOME, or (4) CRUISE.

Signals Required

Phase

Boolean Conversion of Signals to Atomic Inputs

Phase_eq_Valid = 1;
for(i = 0; i < NumUAS; i++)
{
    for(j = 0; j < NumWp; j++)
    {
        // if UAS i's flight plan's Phase, an integer, is 1, 2, 3, or 4
        // and both values are not "nan"
        if((Phase[i][j] > 0) && (Phase[i][j] < 5) && (Phase[j][i] == Phase[j][i]))
        {
            Phase_eq_Valid = 0;
        }
    }
}

MLTL Specification

Original: Phase_eq_Valid

Fault Explanation

The Phase (type of waypoint) is not valid. Only START, STOP, HOME, and CRUISE waypoints are valid waypoints in the current implementation of this UTM.

Additional Notes

Figures

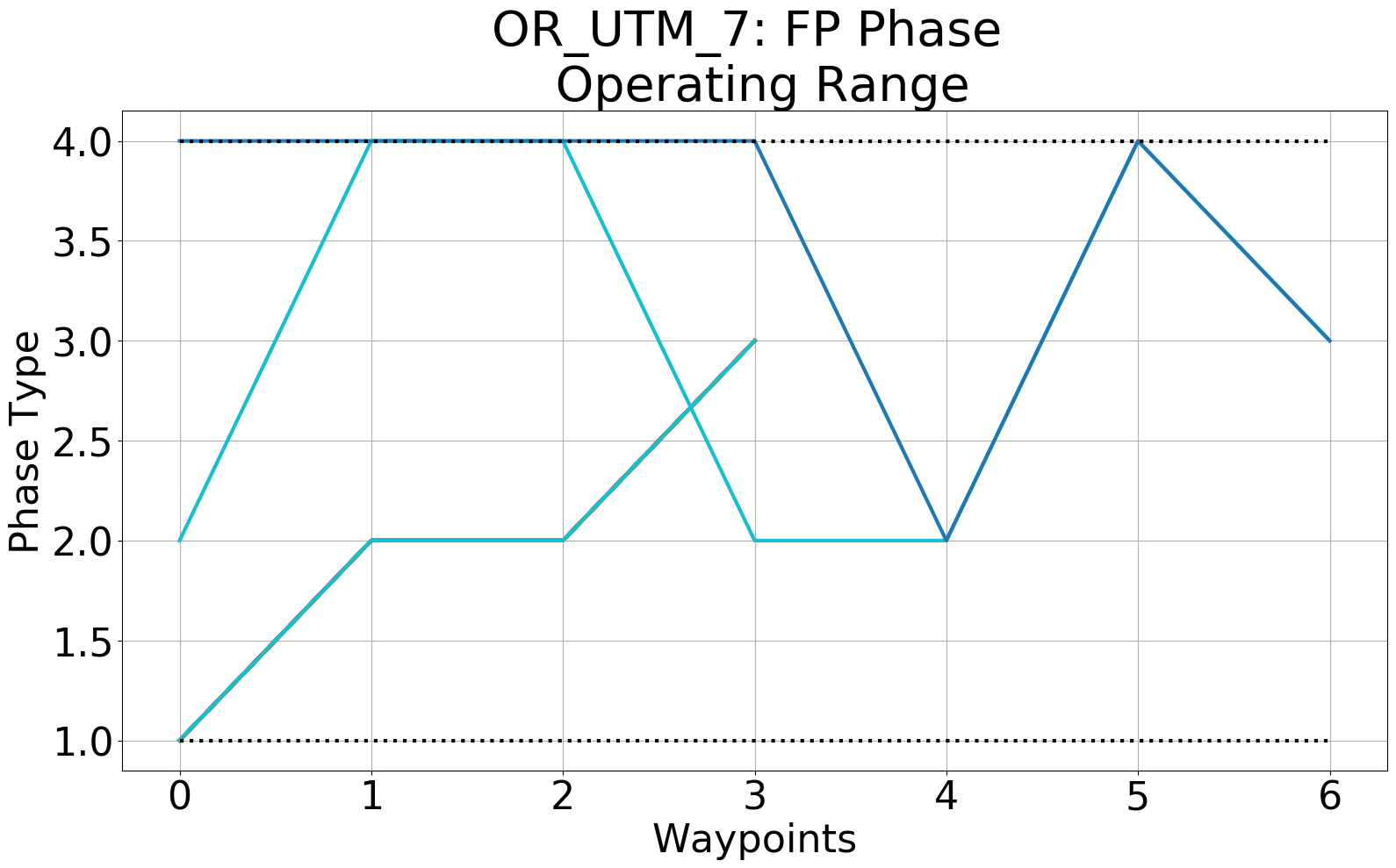

Figure 1: All of the flight plan's phases (Phase) from each GCS the UTM reads from the waypoint flight plan datatable.

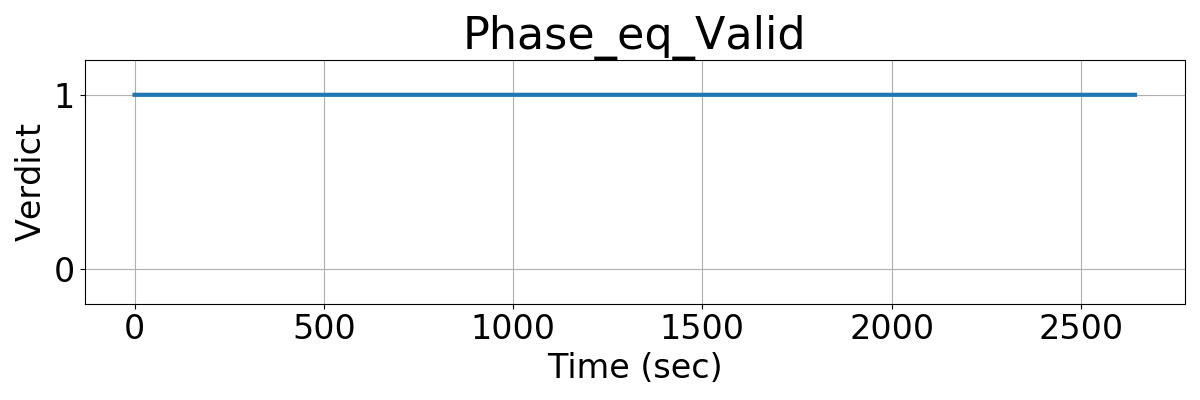

Figure 2: The output of R2U2's monitoring of specification OR_UTM_7, confirming that no flight plan's phase (Phase) exceeds its operating range.

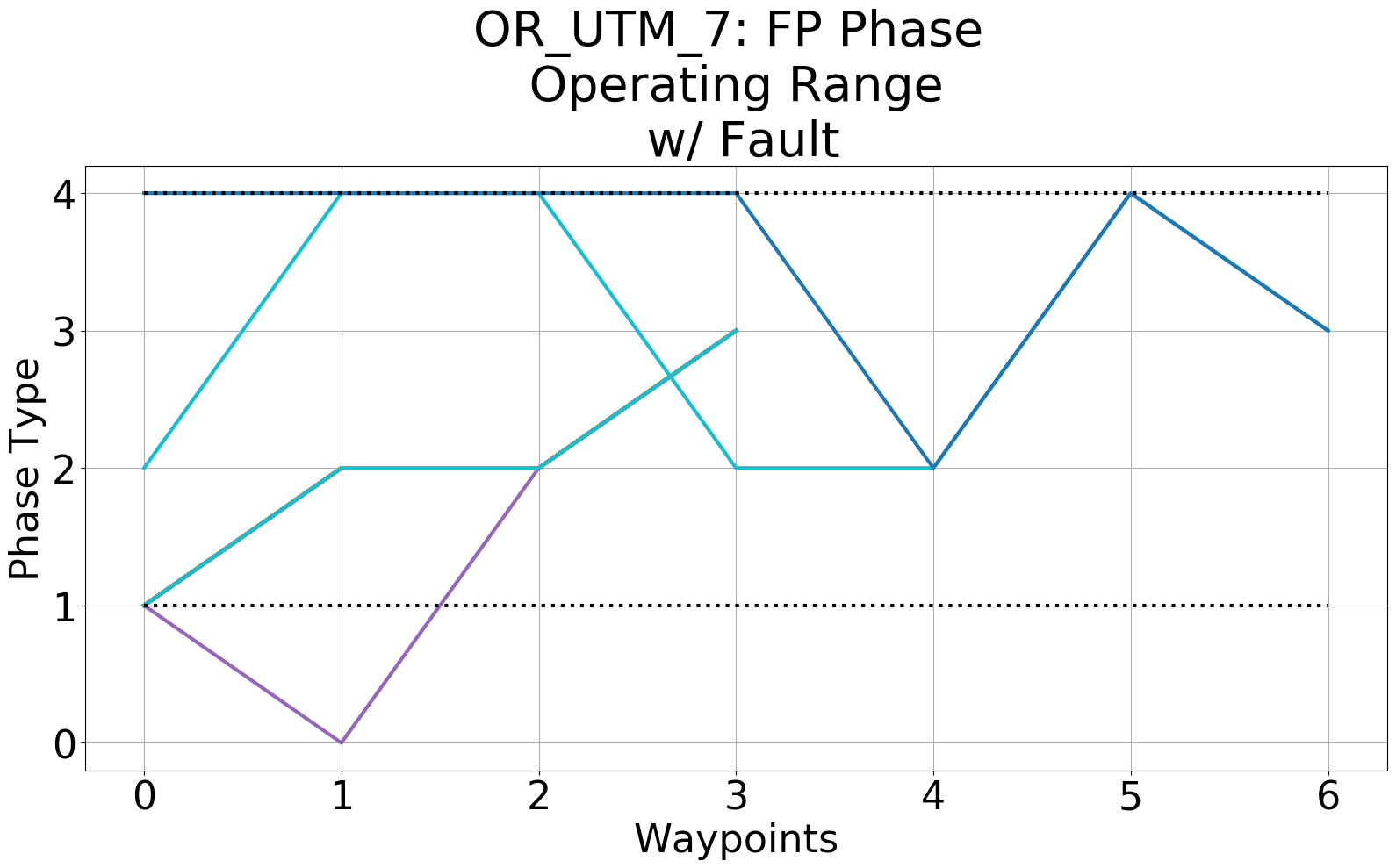

Since Fig. 1 had no flight plans where Phase exceeds 1 through 4, we manually injected a fault into a single waypoint of a flight plan (purple).

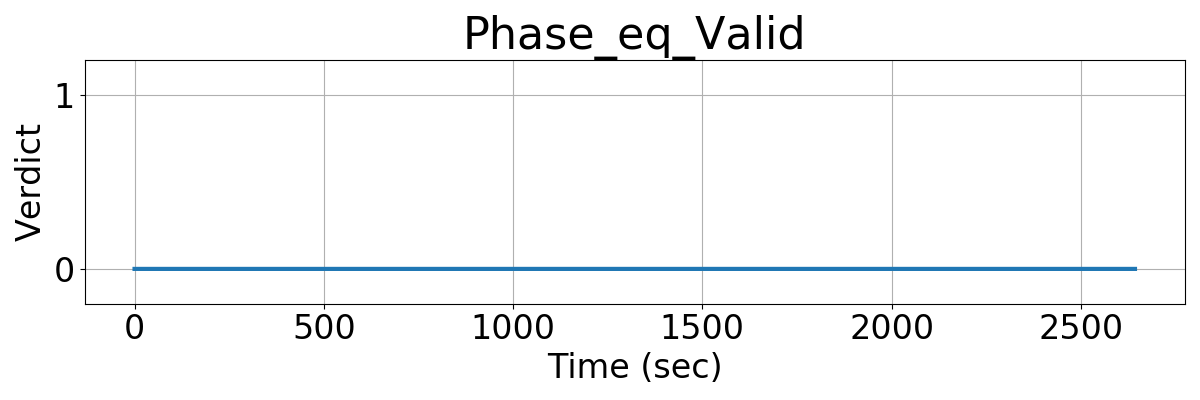

Figure 4: The output of R2U2's monitoring of specification OR_UTM_7, showing that R2U2 catches when the injected fault occurs.
