Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System"
by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

PM_UAS_2

Specification Description

When the VelE is positive and not small (>0.25m/s), the change in Long shall be greater than 0 at all instances (in the northern hemisphere). The opposite shall be true when VelE is negative and not small (<0.25m/s).

Signals Required

VelE, Long

Boolean Conversion of Signals to Atomic Inputs

DeltaLong = Long - PREV_LONG
VelE_gt_0.25: VelE > 0.25
VelE_lt_0.25: VelE < -0.25
DeltaLong_gt_0: DeltaLong > 0
DeltaLong_lt_0: DeltaLong < 0

MLTL Specification

☐[0,M] [(VelE_gt_0.25 ∧ DeltaLong_gt_0) ∨ (VelE_lt_0.25 ∧ DeltaLong_lt_0)]

Fault Explanation

There is no change in Longitude due to the Velocity East, where there should be.

Additional Notes

Need magnitude of VelE to be small so that a DeltaLong should be non 0. This accounts for some of minor disturbances that might occur when stationary.

Figures

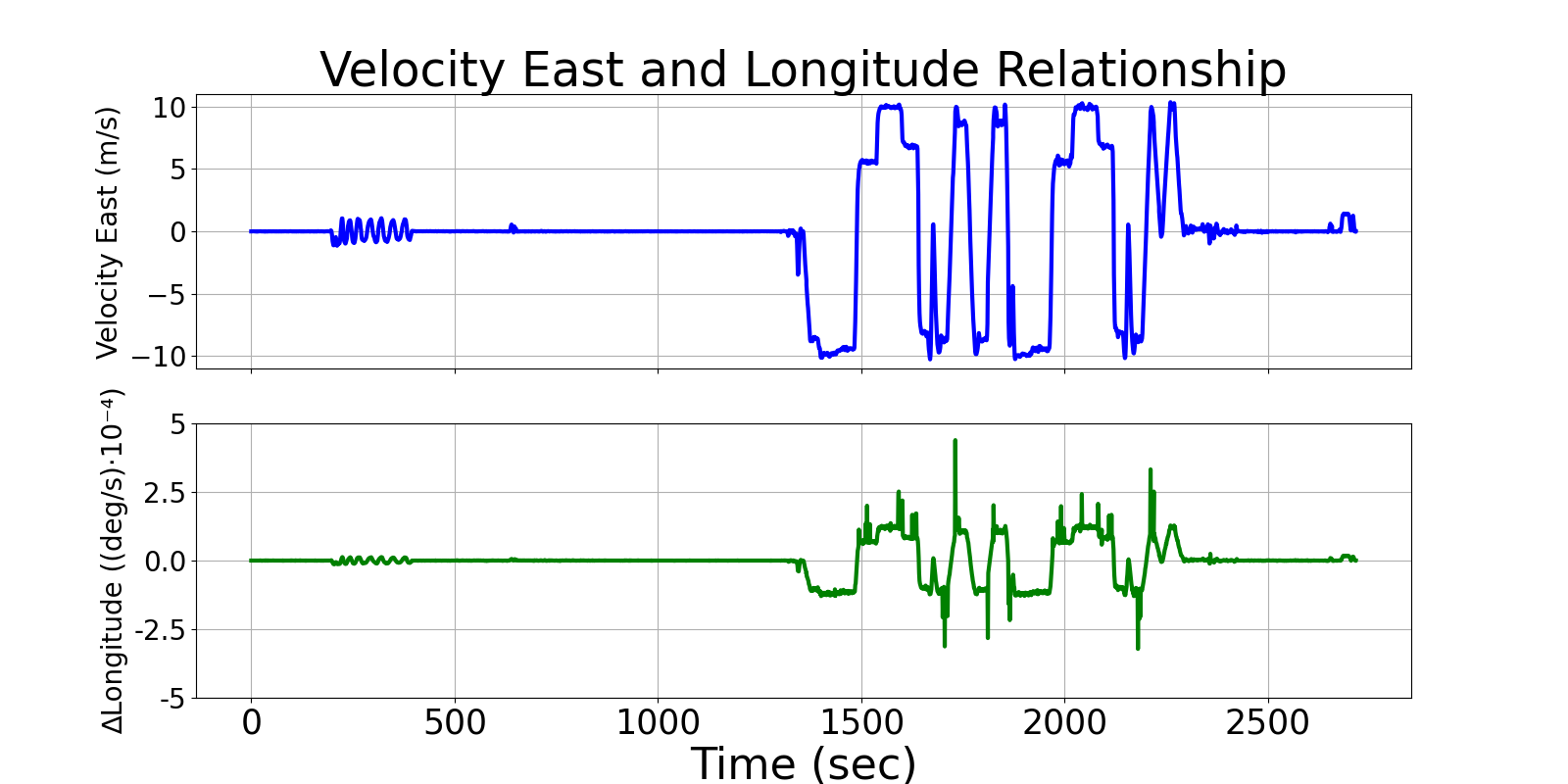

Figure 1: Graph showing the Relationship between Velocity East and change Longitude.

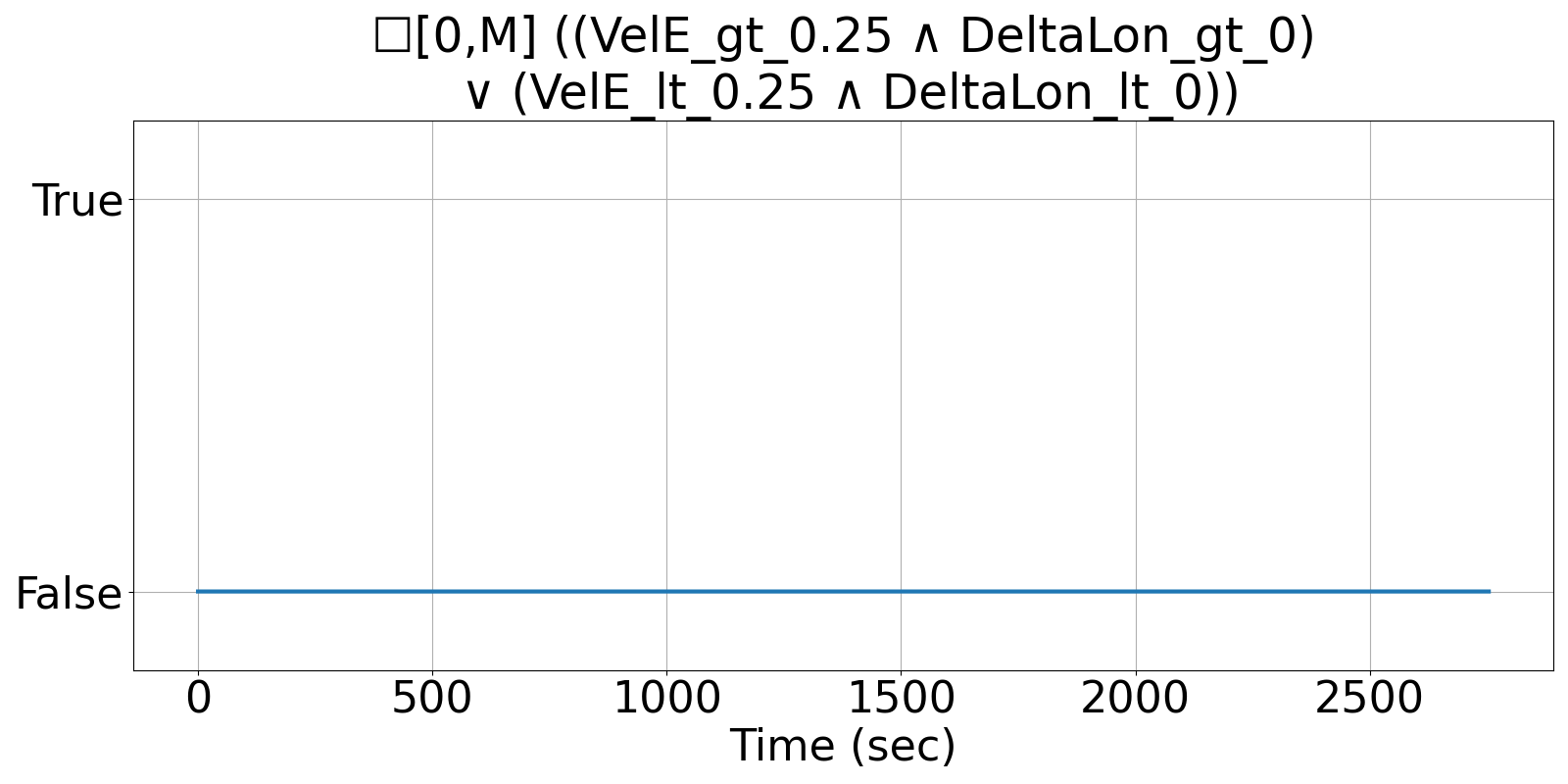

Figure 2: Output of R2U2 for PM_UAS_2, showing that it was able to return false when detecting an error.
