Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System" by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

PM_UAS_3

Specification Description

The relationship between the Lat and the PosN measurements shall be directly proportional by factor k1. The error between these two should be less than ERROR_LAT_POSN. If it is outside these error bounds, then allow 3 timesteps for recovery

Signals Required

Lat, PosN

Boolean Conversion of Signals to Atomic Inputs

PosNrise = POSN - PREV_POSN
LatRise = LAT - PREV_LAT
ConvFact = PosNrise/LatRise
PosNrise_geq_0.25: PosNrise ≥ 0.25
PosNrise_leq_0.25: PosNrise ≤ -0.25
ConvFact_leq_k1_plus_Error: ConvFact ≤ k1 + ERROR_LAT_POSN
ConvFact_geq_k1_minus_Error: ConvFact ≥ k1 - ERROR_LAT_POSN

MLTL Specification

(PosNrise_geq_0.25 ∨ PosNrise_leq_0.25) → ¬☐[0,3] (¬ConvFact_leq_k1_plus_Error ∨ ¬ConvFact_geq_k1_minus_Error)

Fault Explanation

The relationship between the Latitude and Position North is outside the error bounds and are too widely varied.

Additional Notes

k1 would have to be predefined and is mission dependent based on initial altitude. ERROR_LAT_POSN could be given a value like 25% of k1

Figures

Figure 1: Relationship between Latitude and Position North.

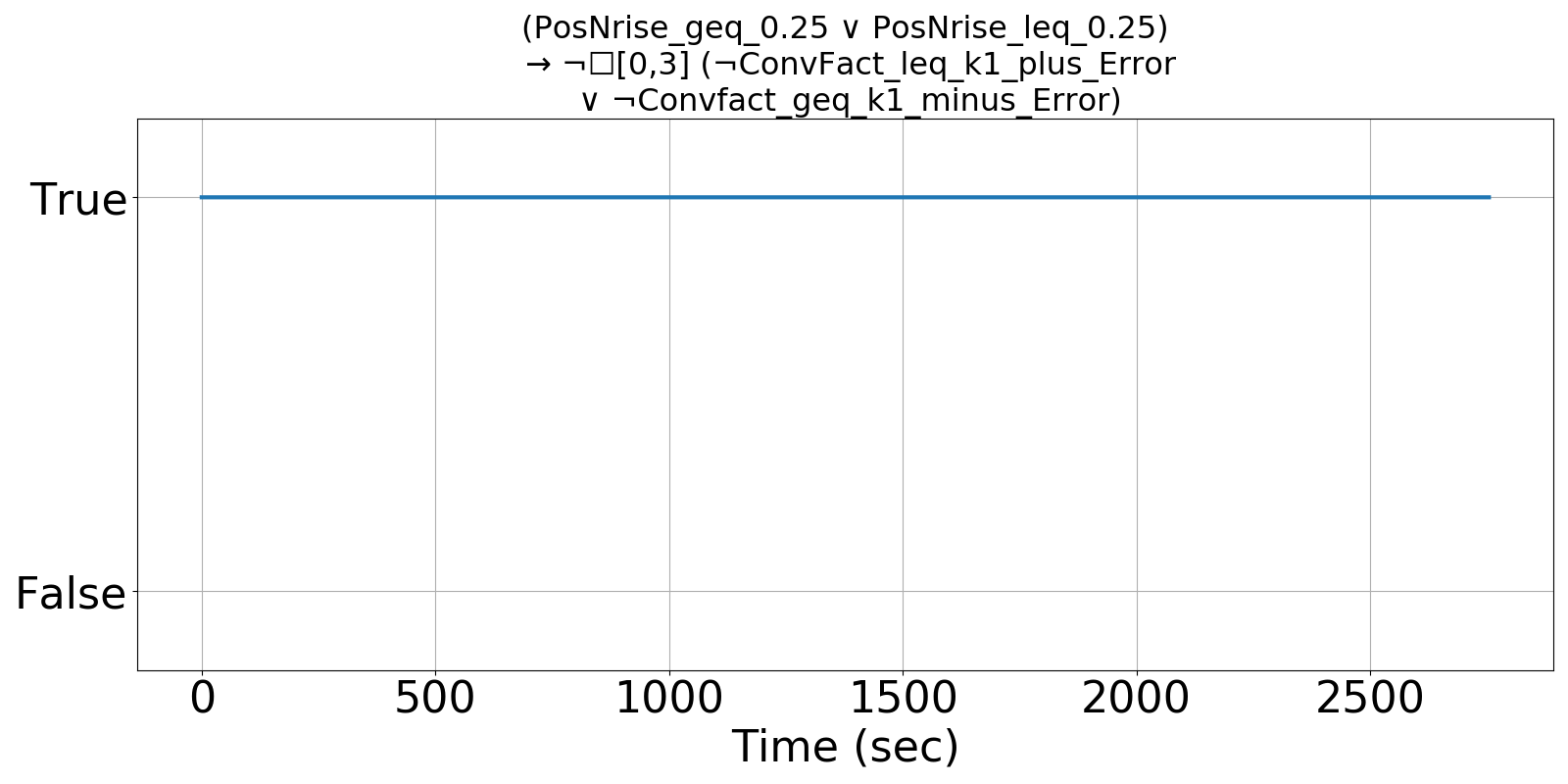

Figure 2: R2U2's output of PM_UAS_3, showing that the Latitude and Position North stayed within error bounds.

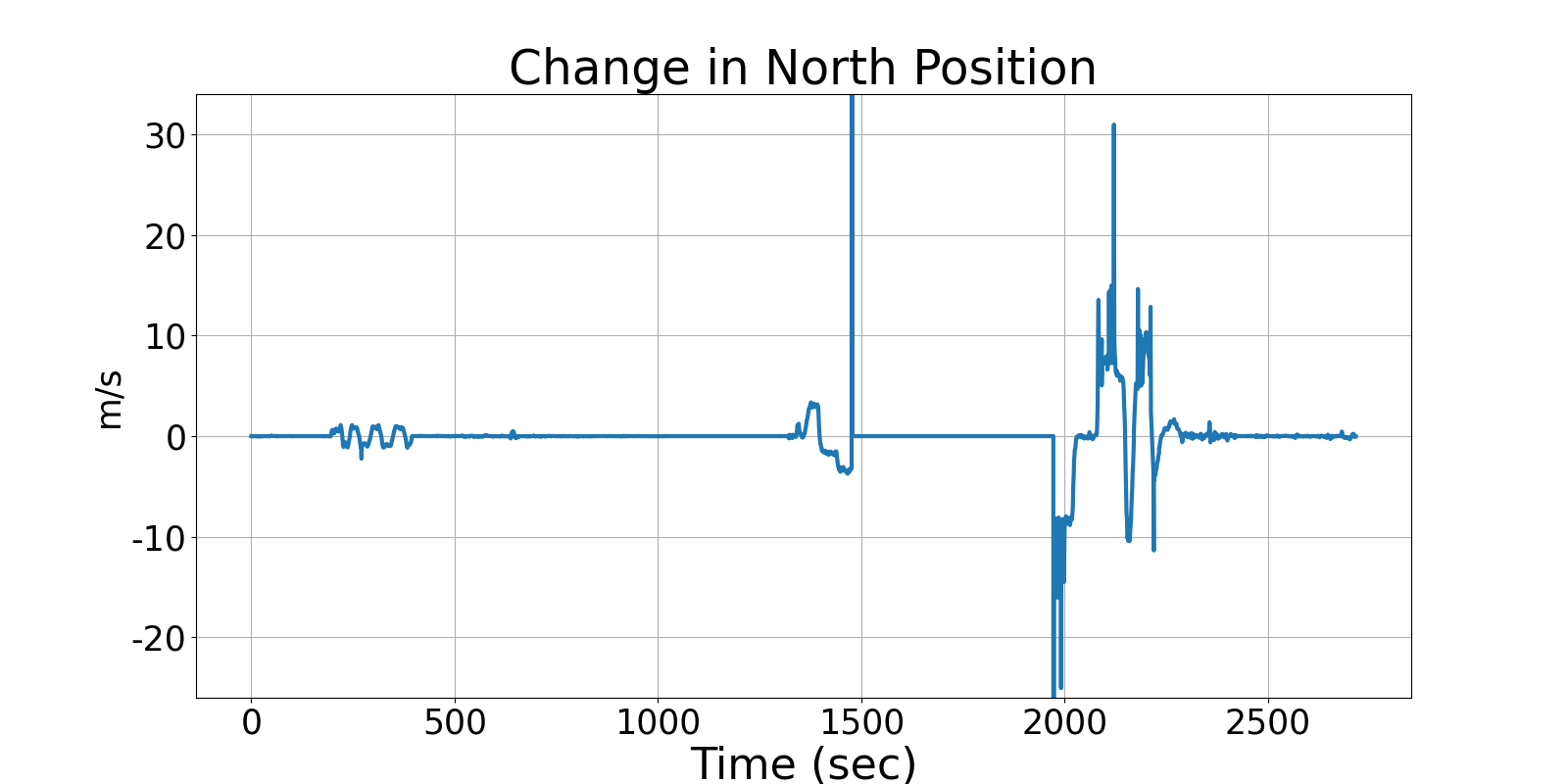

Figure 3: Injected fault into Position North.

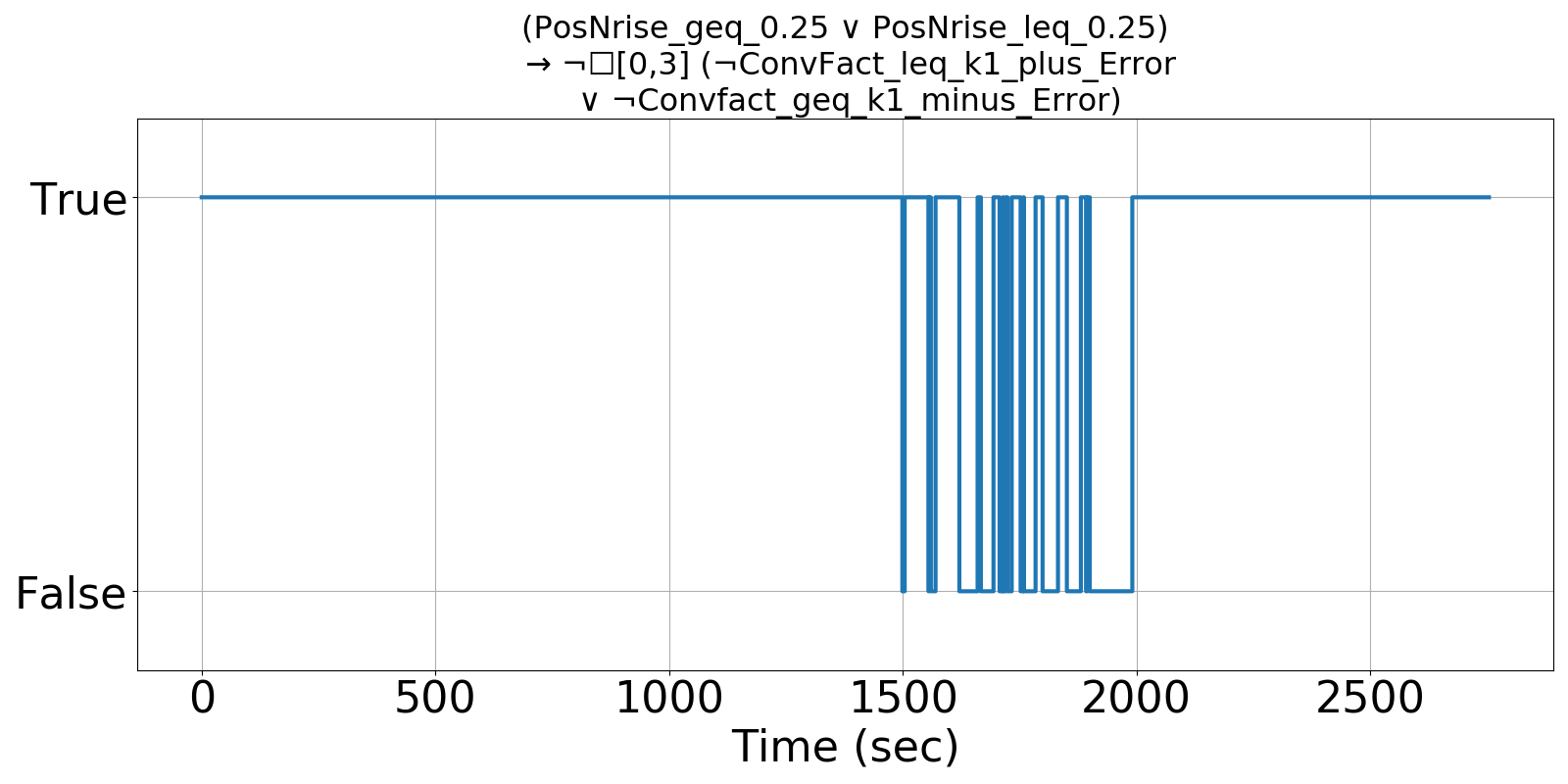

Figure 4: R2U2 detects the injected fault, returning false.
