Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System" by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

PM_UAS_5

Specification Description

There should be a linear relationship between the Alt and the PosD measurements. The error between these two should be less than ERROR_ALT_POSD

Signals Required

Alt, PosD

Boolean Conversion of Signals to Atomic Inputs

PosD_minus_Alt_lt_Error: |PosD + Alt| < ERROR_ALT_POSD

MLTL Specification

☐[0,M] (PosD_minus_Alt_lt_Error)

Fault Explanation

The difference between the altitude and the vertical position are too widely varied. Because PosD is negative, the values are added to compensate.

Additional Notes

Figures

Figure 1: Graph of Altitude and vertical position.

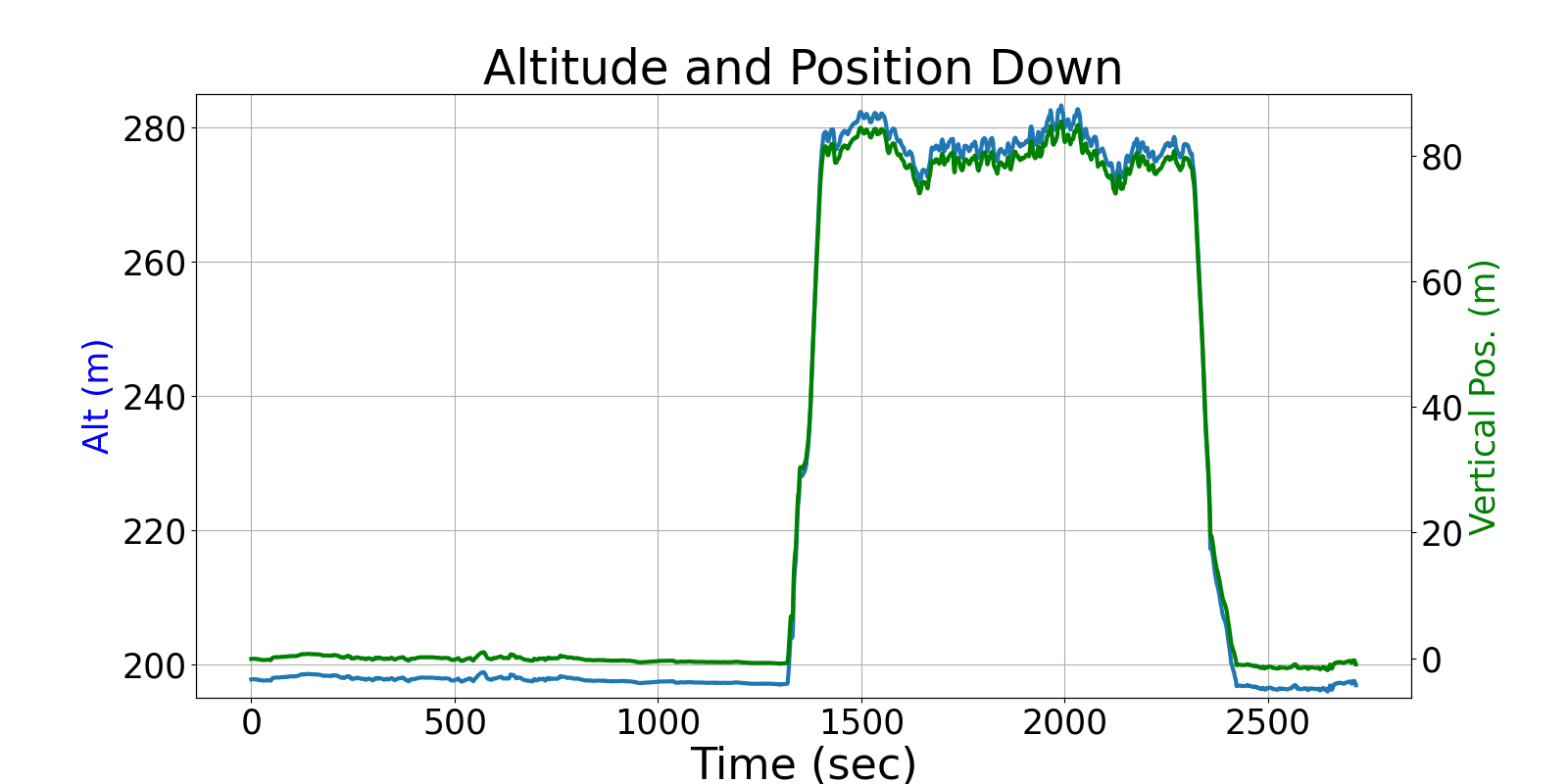

Figure 2: R2U2's output of PM_UAS_5, showing that the difference between Alt and PosD was never outside error bounds.

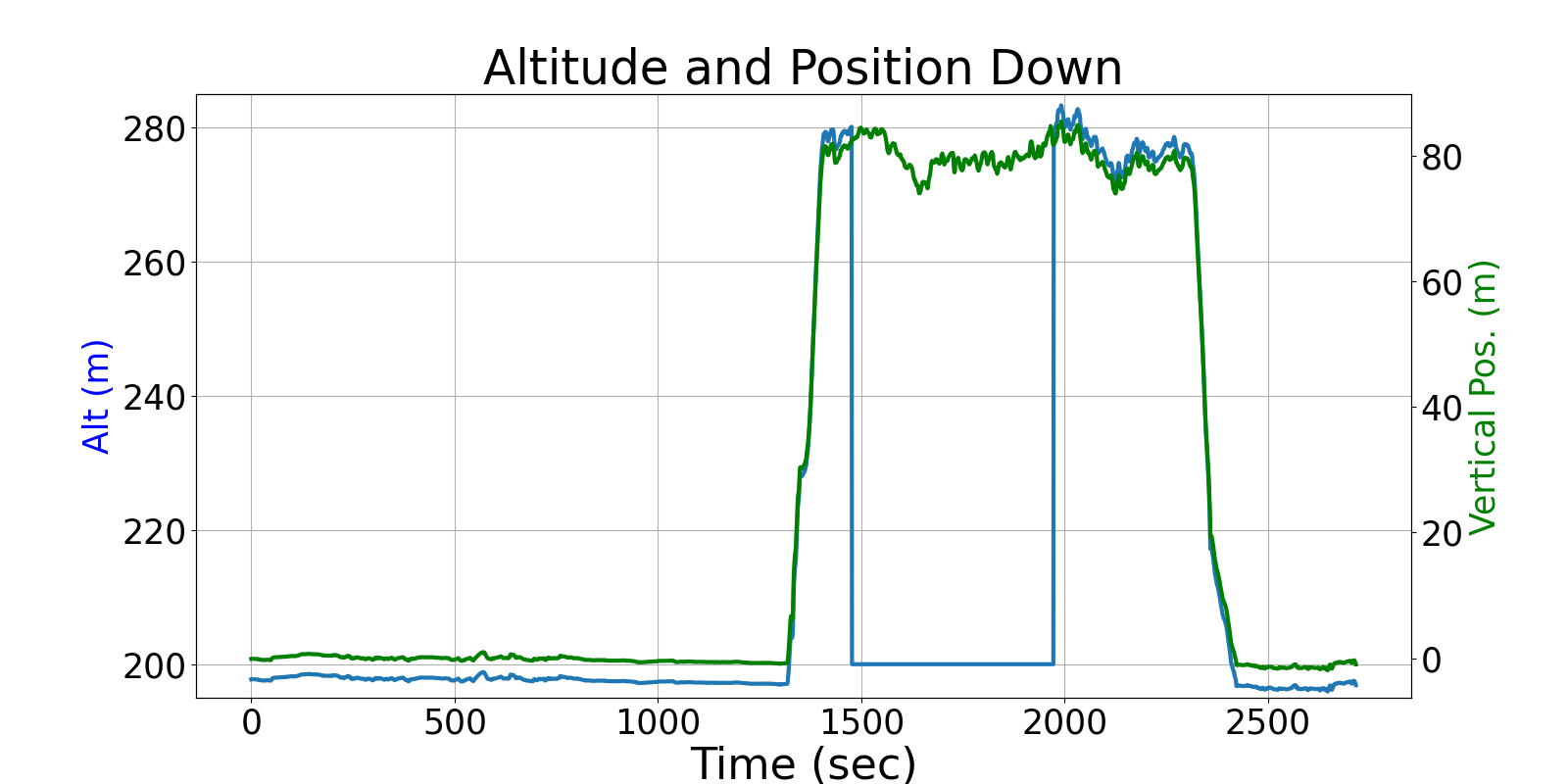

Figure 3: Fault injected into Altitude.

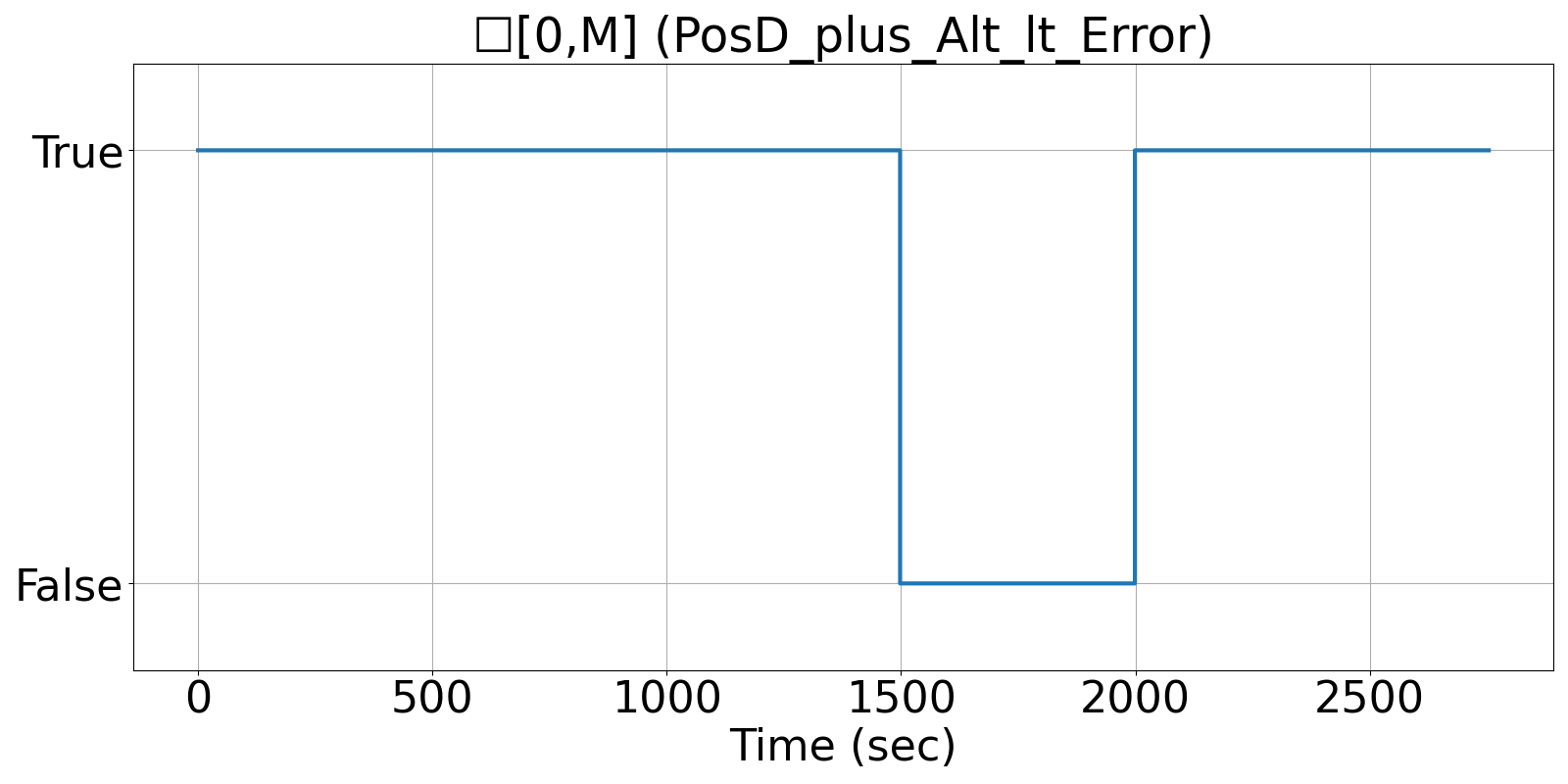

Figure 4: R2U2's output, showing that the fault was detected and returned false.
