Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System" by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

RC_UAS_2

Specification Description

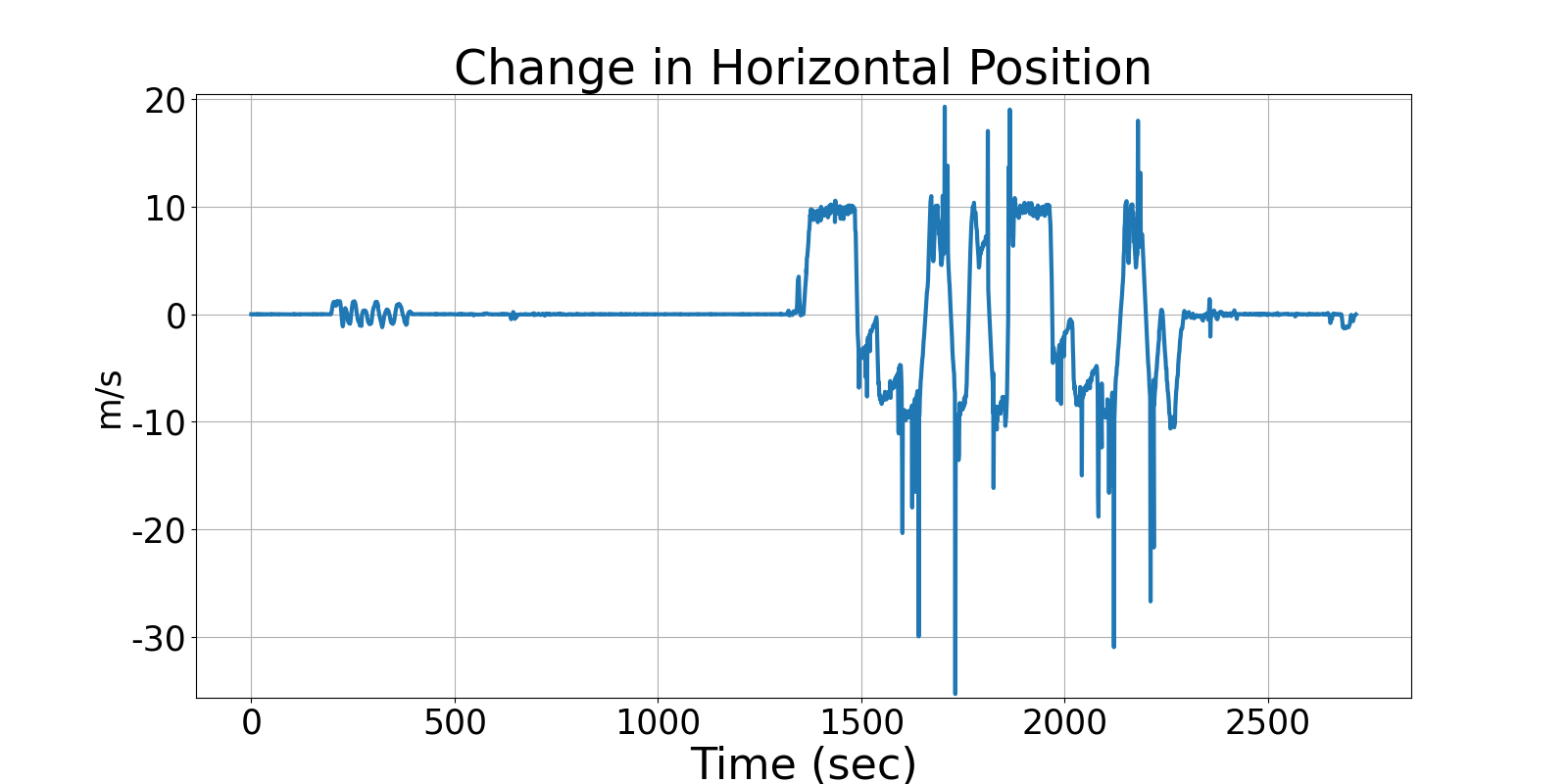

The horizontal position (PosN, PosE) magnitude will not change by more than POSH_DELTA_MAX each sample instance at any time

Signals Required

PosN, PosE

Boolean Conversion of Signals to Atomic Inputs

PosHMag = √(PosN² + PosE²)
PosHMag_lt_Prev_plus_Delta: PosHMag < PREV_POS_MAG + POSH_DELTA_MAX
PosHMag_gr_Prev_minus_Delta: PosHMag > PREV_POS_MAG - POSH_DELTA_MAX

MLTL Specification

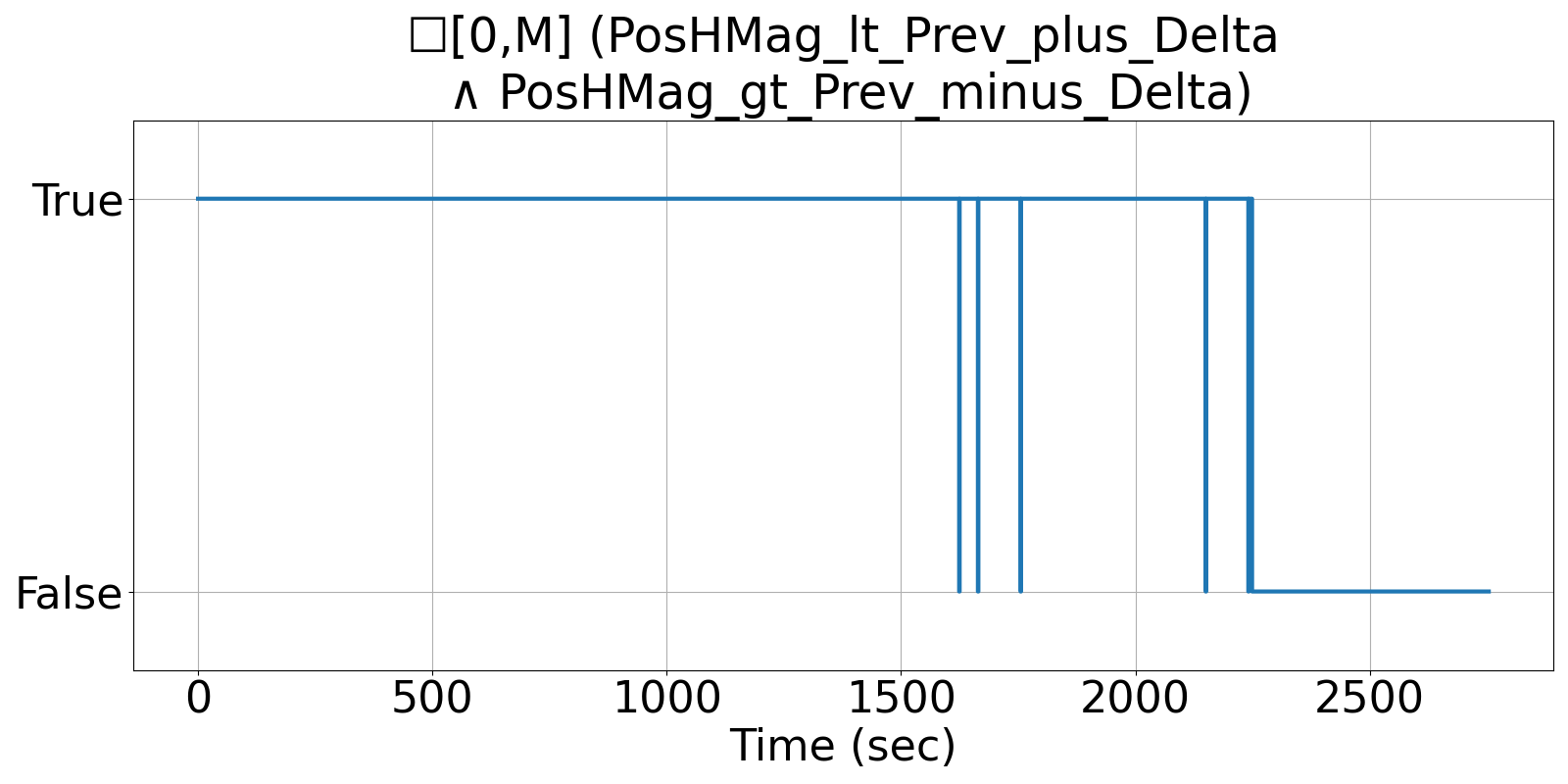

☐[0,M] (PosHMag_lt_Prev_plus_Delta ∧ PosHMag_gt_Prev_minus_Delta)

Fault Explanation

Horizontal Position is changing too fast.

Additional Notes

POSH_DELTA_MAX based on max horizontal speed (56 km/hr from data sheet) Corresponds with operating bounds spec for horizontal velocity

Figures
