Integrating Runtime Verification into an Automated UAS Traffic Management System

Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System" by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

RC_UAS_5

Specification Description

Yaw will not change by more than YAW_DELTA_MAX each sample instance when the Subphase is "Go to" at any time

Signals Required

Subphase, Yaw

Boolean Conversion of Signals to Atomic Inputs

Subphase_eq_GoTo: Subphase =="Go to"
Yaw_lt_Prev_plus_Delta: Yaw < PREV_YAW + YAW_DELTA_MAX
Yaw_gt_Prev_minus_Delta: Yaw > PREV_YAW - DELTA_MAX

MLTL Specification

☐[0,M] (Subphase_eq_GoTo → (Yaw_lt_Prev_plus_Delta ∧ Yaw_gt_Prev_minus_Delta) )

Fault Explanation

UAS should be flying relatively straight: it is turning more than typical

Additional Notes

The rate at which the UAS can turn during "Go To" should be low because in the phase the aircraft should be flying in one direction. YAW_DELTA_MAX would need to be determined experimentally

Figures

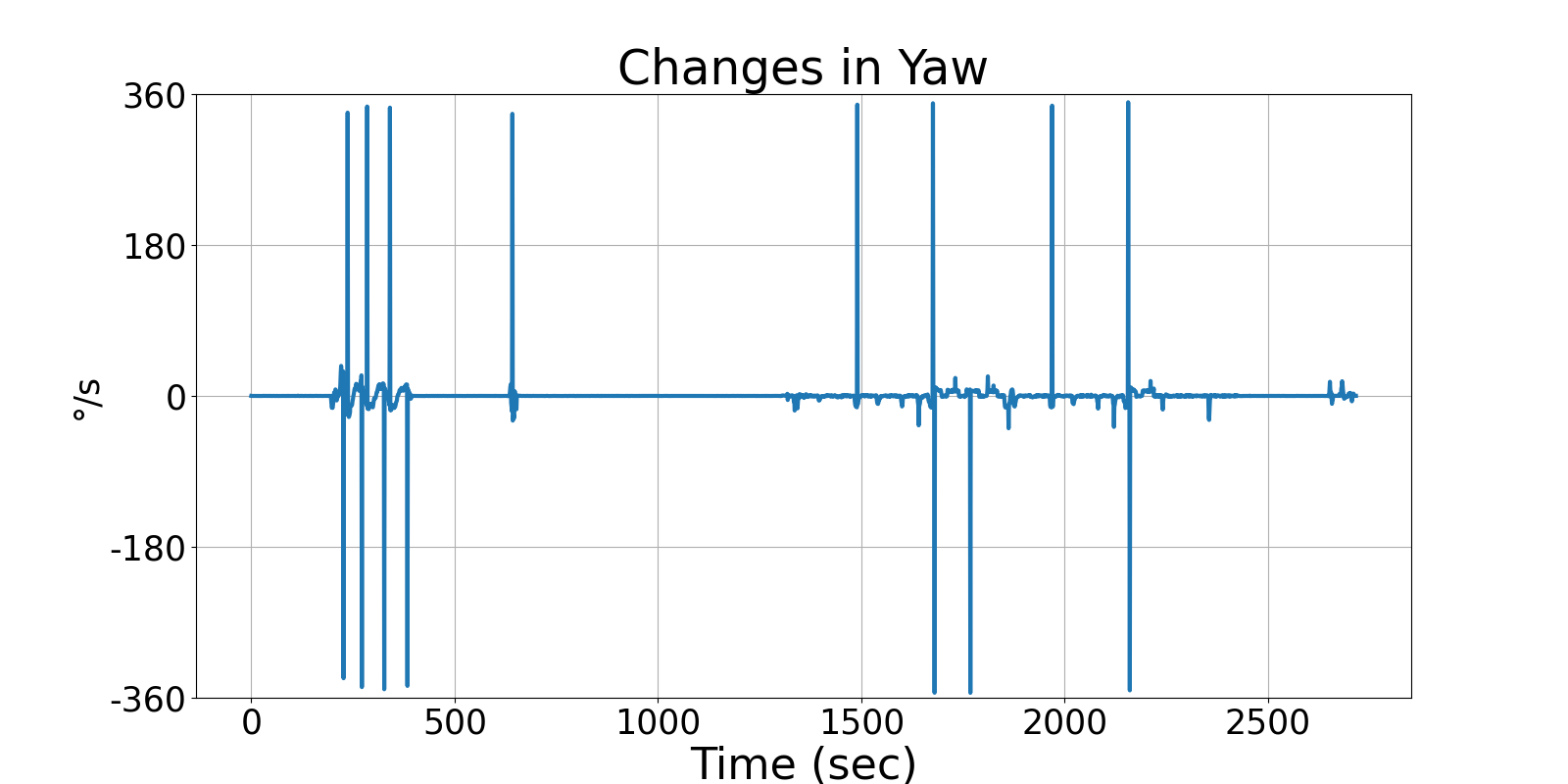

Figure 1: Changes in Yaw. Sudden, large spikes are cause by the Vapor rotating from -180⁺ to 180⁻ or vice-versa.

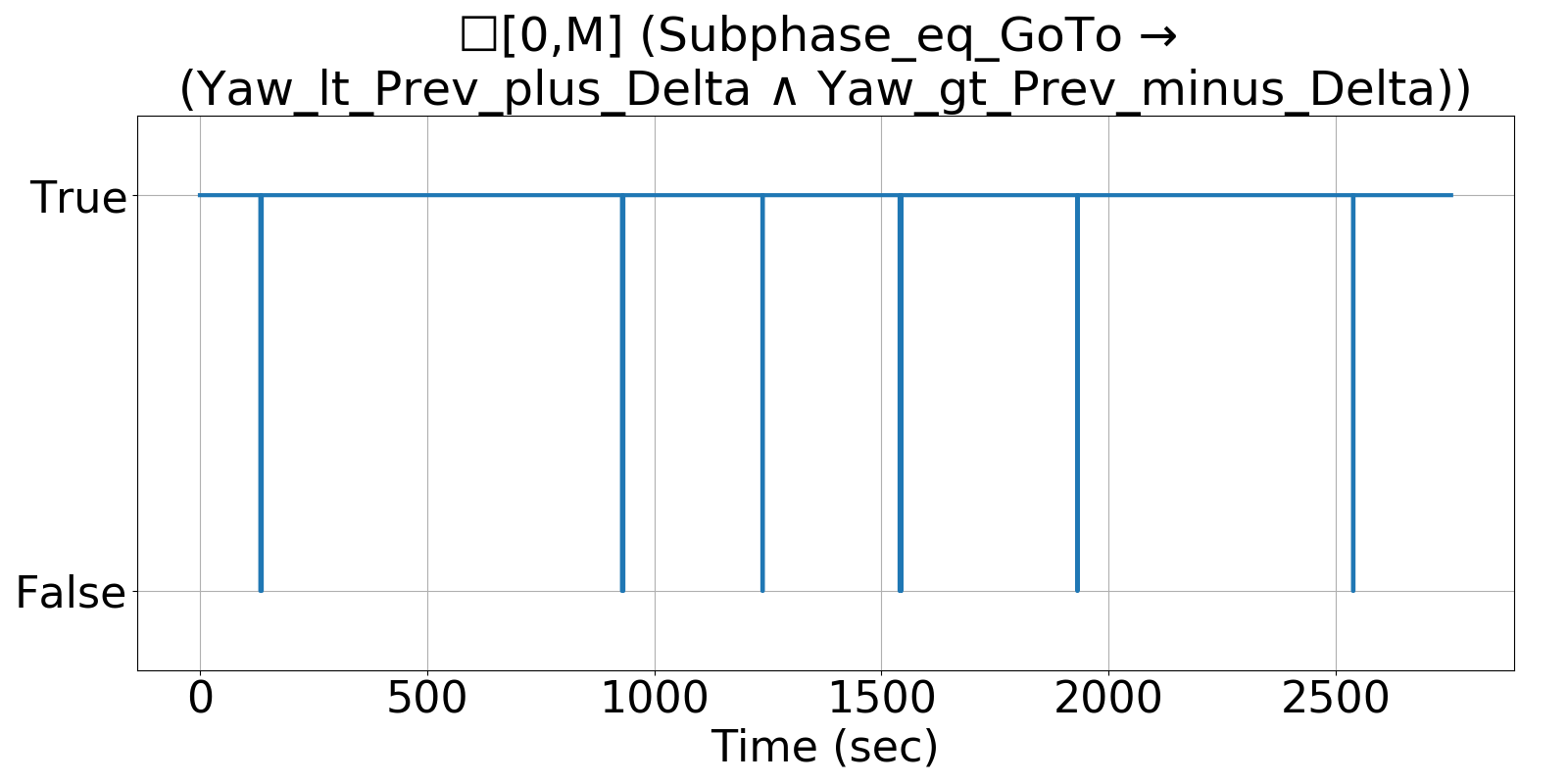

Figure 2: R2U2's output showing that the changes in yaw exceeded bounds while Subphase equals Go To
