RC_UAS_6

Specification Description

The climb rate (VelD) of the UAS will be less than VELD_DELTA_CLIMB and greater than VELD_DELTA_DESC, but if it is not, allow 3 timesteps to recover

Signals Required

VelD

Boolean Conversion of Signals to Atomic Inputs

VelD_lt_Prev_plus_Delta_Climb: VelD < PREV_VELD + VELD_DELTA_CLIMB
VelD_gt_Prev_minus_Delta_Desc: VelD > PREV_VELD - VELD_DELTA_DESC

MLTL Specification

¬☐[0,3] ¬(VelD_lt_Prev_plus_Delta_Climb ∧ VelD_gt_Prev_minus_Delta_Desc)

Fault Explanation

Vertical Velocity is changing too fast

Additional Notes

VELD_DELTA_CLIMB and VELD_DELTA_DESC should not lead to an excess of 2G's. Corresponds to acceleration sensor bounds spec

Figures

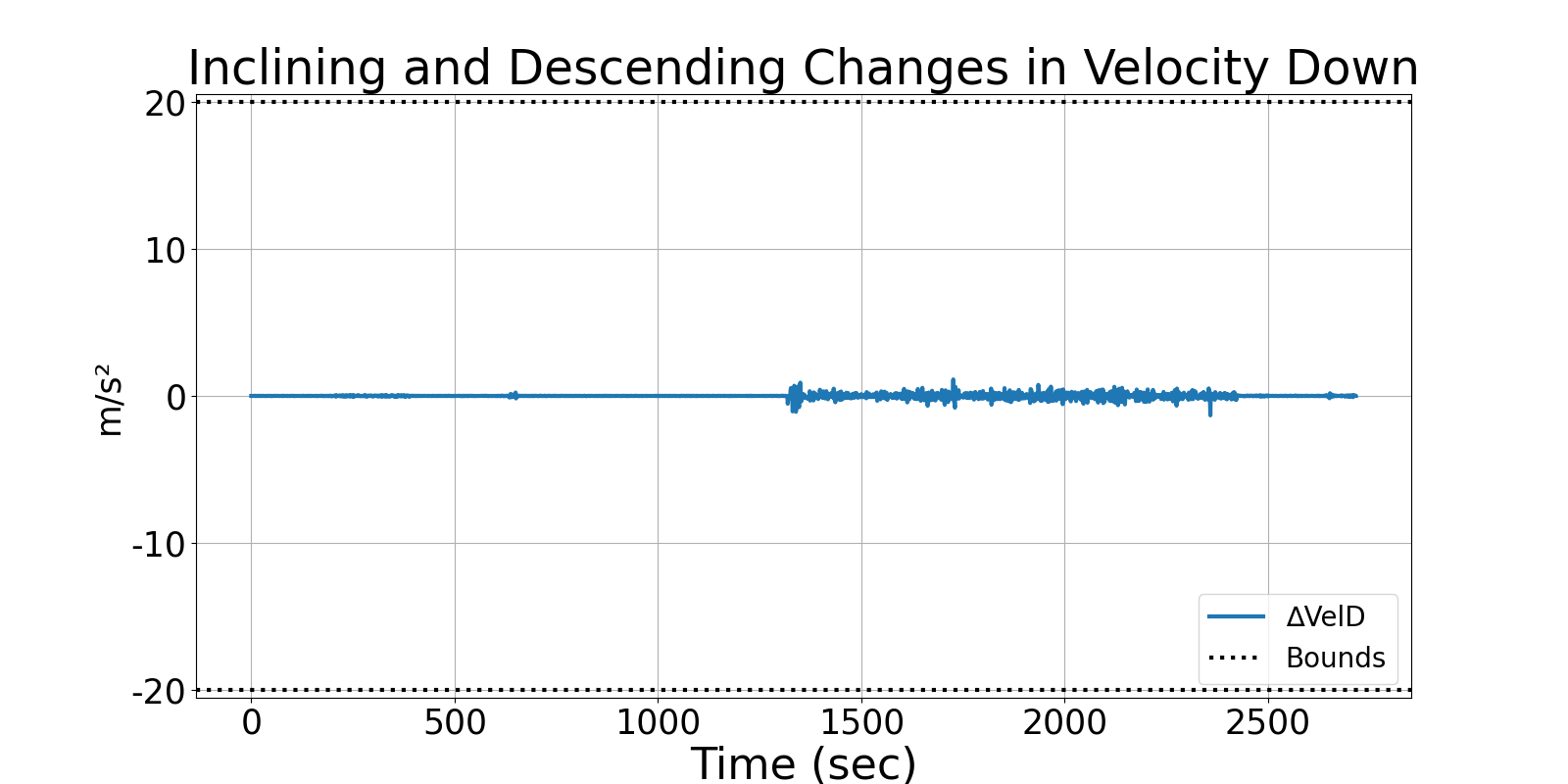

Figure 1: Changes in Velocity Down.

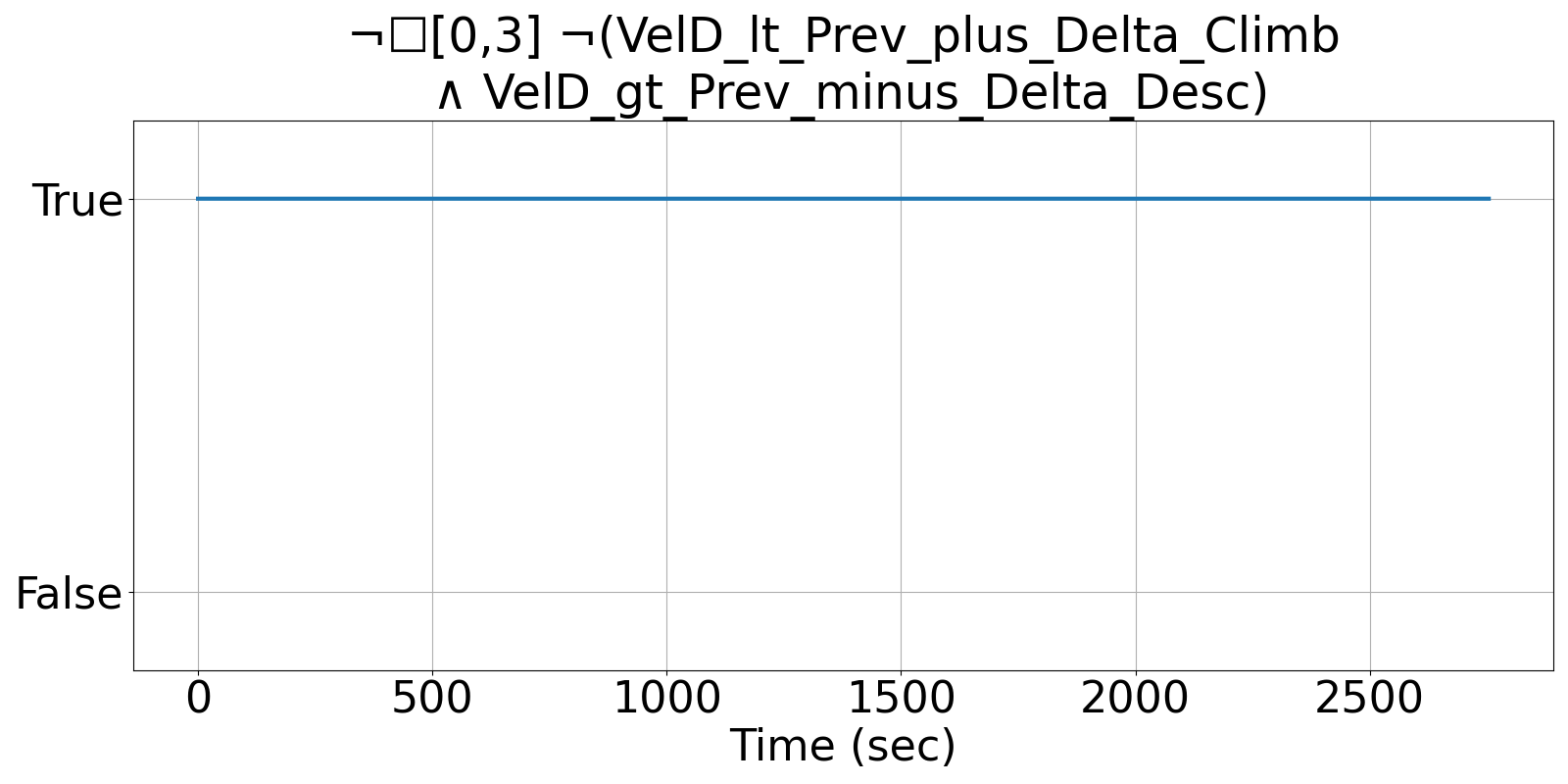

Figure 2: R2U2's output for RC_UAS_6, showing that the changes in velocity never exceeded it's bounds.

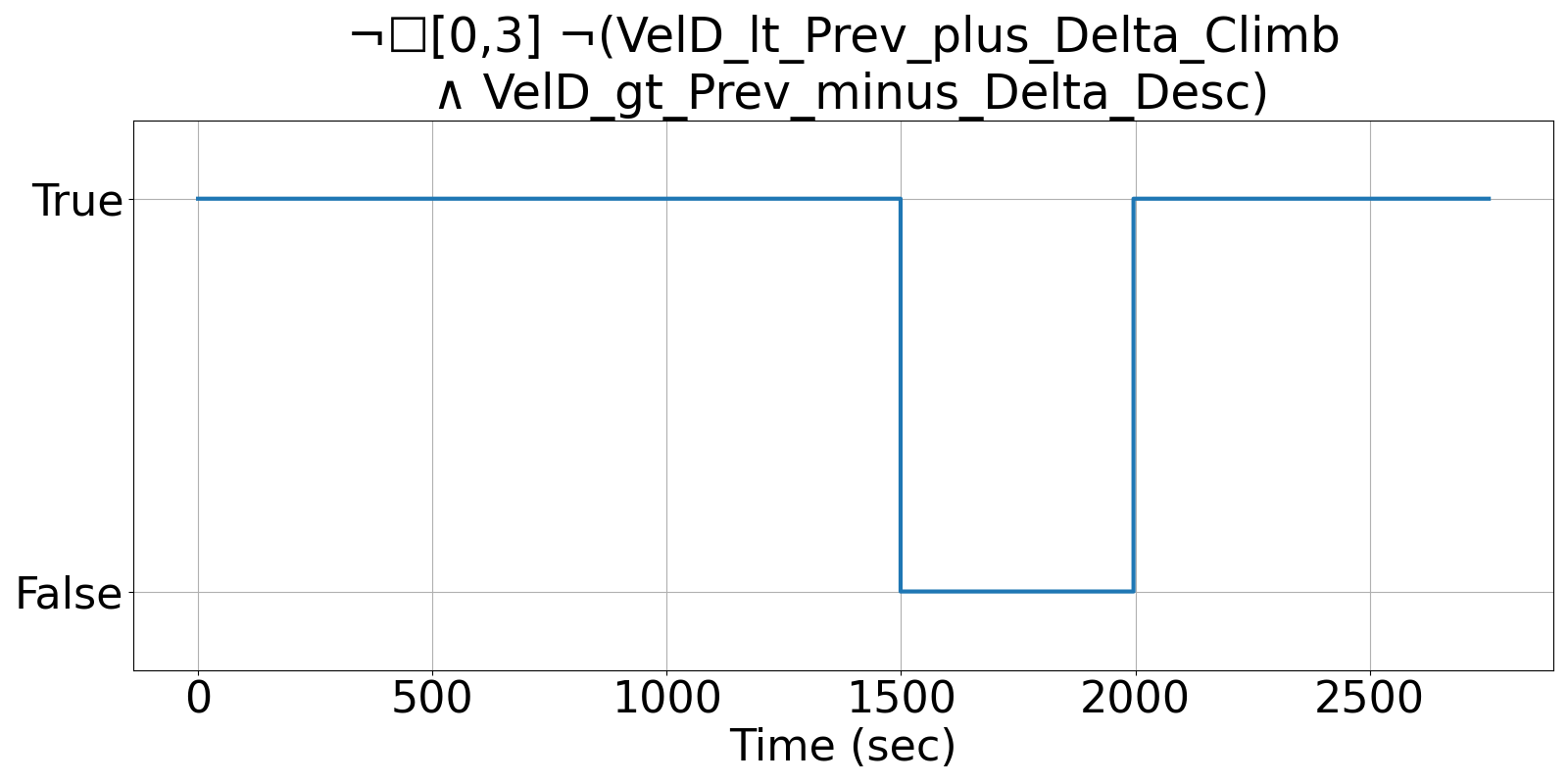

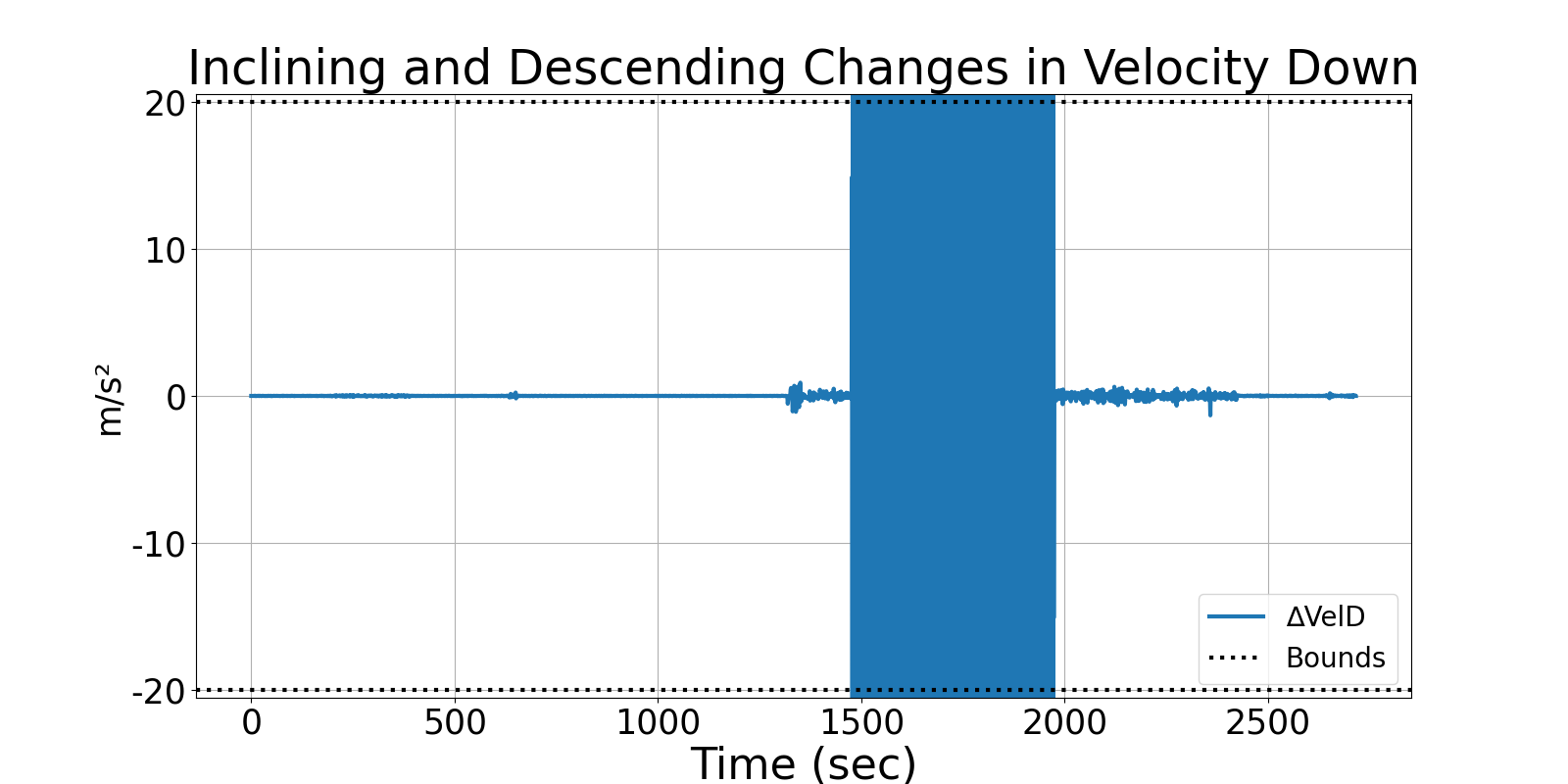

Figure 3: Fault injected into Velocity Down, showing rapid changes in velocity, exceeding both bounds.
Figure 4: R2U2's output, showing that it was able to catch the fault.
