RC_UAS_7

Specification Description

There should be noise in the Pres measurement when Phase is not "Ready" such that the change is at a minimum PRES_DELTA_MIN, but if there is not, allow 3 timesteps to recover

Signals Required

Pres, Phase

Boolean Conversion of Signals to Atomic Inputs

Phase_eq_Ready: Phase == "Ready"
Pres_gt_Prev_plus_Delta: Pres > PREV_PRES +  PRES_DELTA_MIN
Pres_lt_Prev_minus_Delta: Pres < PREV_PRES - PRES_DELTA_MIN

MLTL Specification

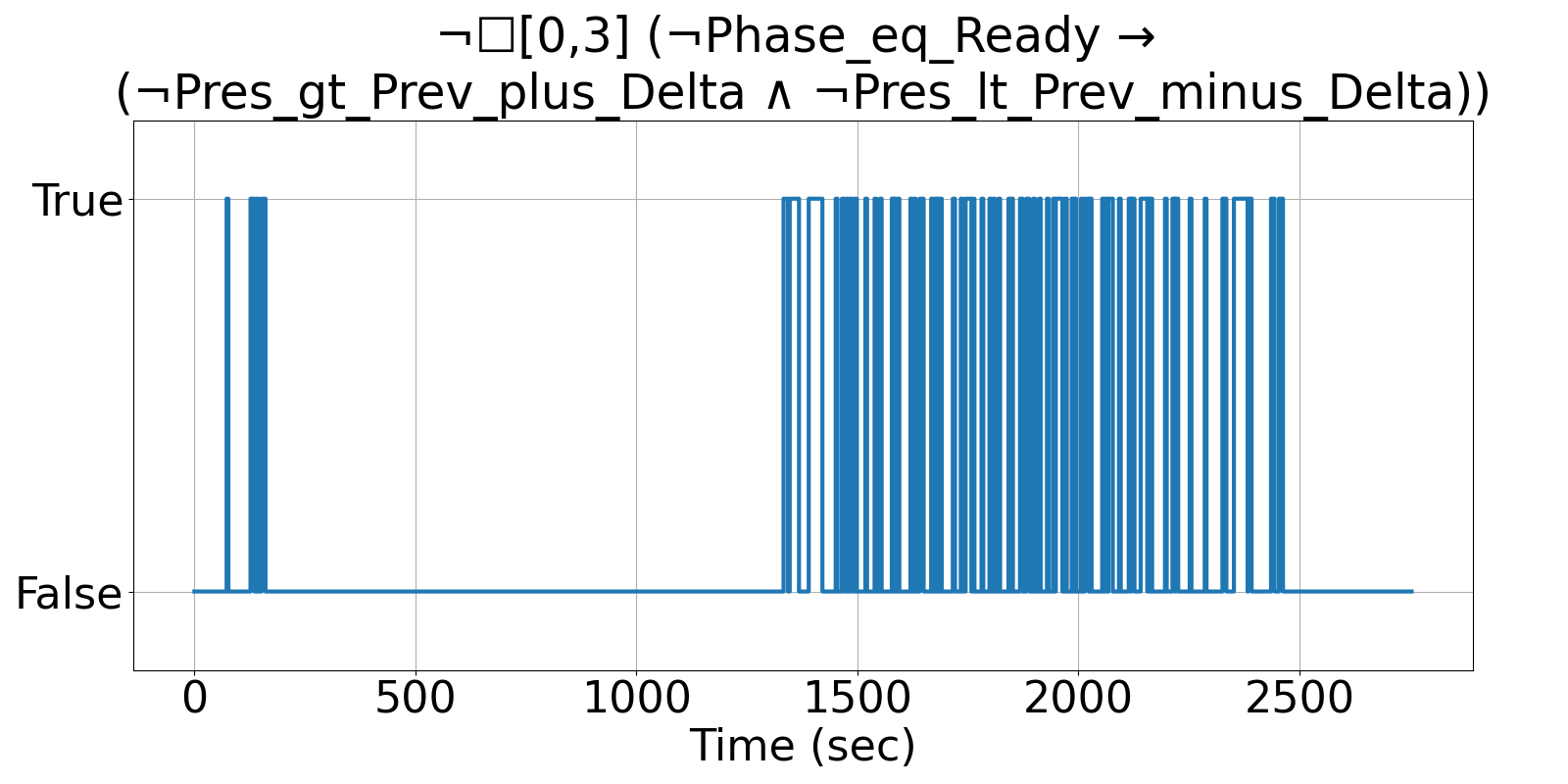

Original: ¬☐[0,3] {¬Phase_eq_Ready → (¬Pres_gt_Prev_plus_Delta ∧ ¬Pres_lt_Prev_minus_Delta) }

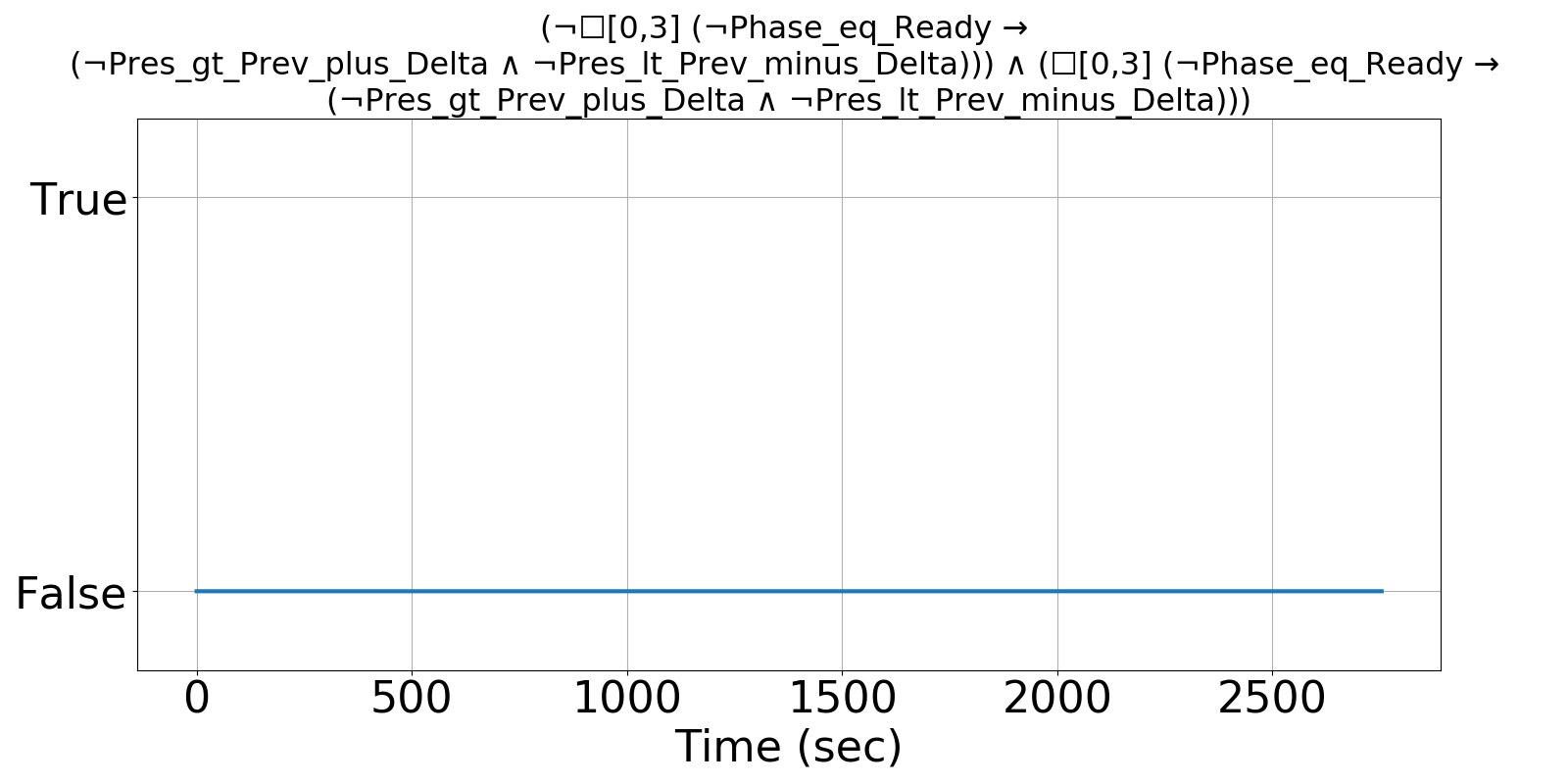

Updated:(¬☐[0,3] {¬Phase_eq_Ready → (¬Pres_gt_Prev_plus_Delta ∧ ¬Pres_lt_Prev_minus_Delta) }) ∧ (☐[0,3] {¬Phase_eq_Ready → (¬Pres_gt_Prev_plus_Delta ∧ ¬Pres_lt_Prev_minus_Delta) })

Fault Explanation

Pressure is changing too slowly

Additional Notes

PRES_DELTA_MIN can be made a small non-zero number to be conservative. If there isn't noise, there is an issue with the sensor

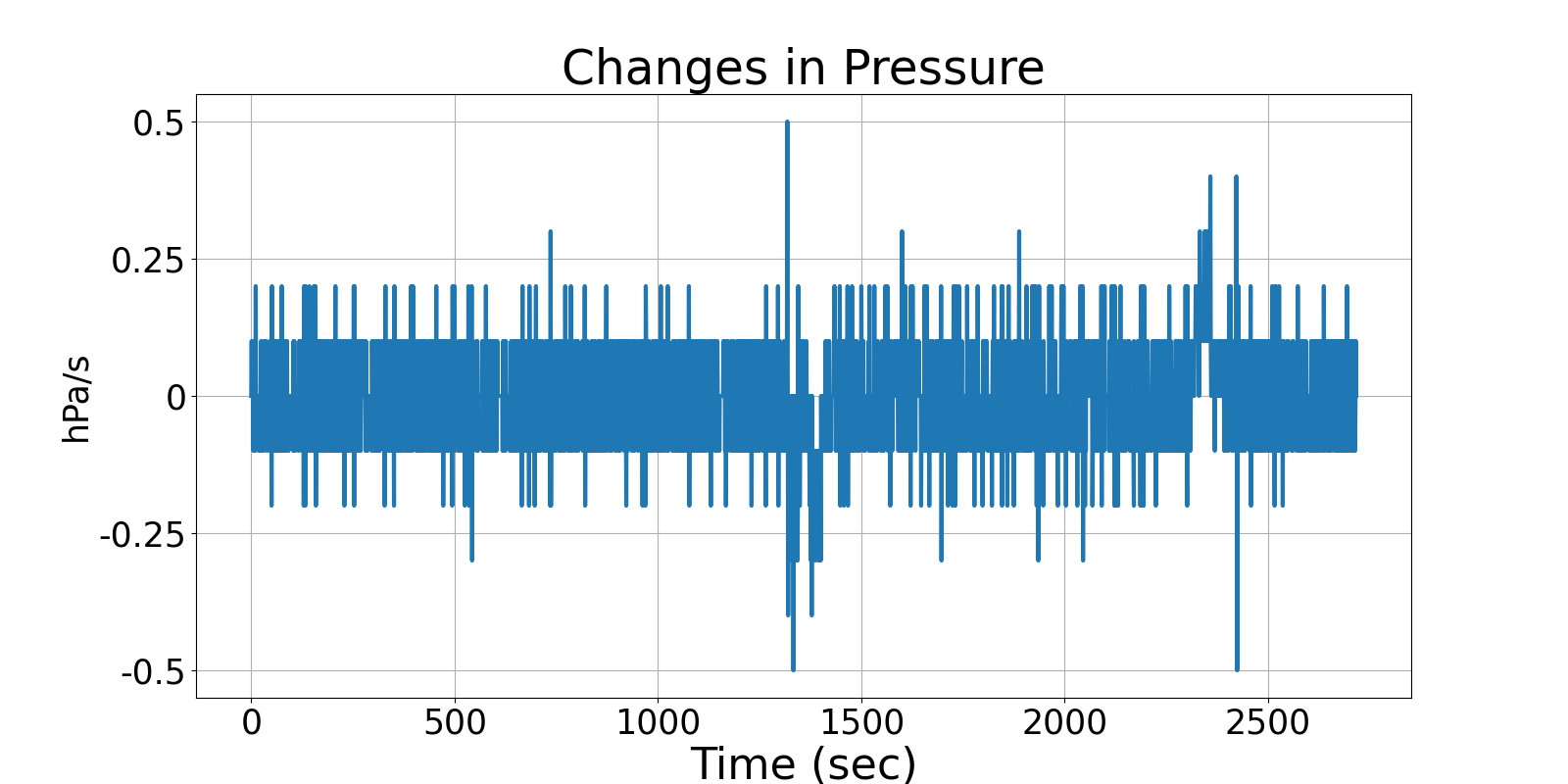

Figures
