Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System"
by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

SB_UAS_10

Specification Description

The Subphase of the UAS will be limited to the following string at all instances: <undefined>, Test actuators, Stationary, Hover, Cruise, Go to, Stop at, In flight, Landed

Signals Required

Subphase

Boolean Conversion of Signals to Atomic Inputs

Subphase_eq_undefined: Subphase == <undefined>
Subphase_eq_TestActuators: Subphase == Test Actuators
Subphase_eq_Stationary: Subphase == Stationary
Subphase_eq_Hover: Subphase == Hover
Subphase_eq_Cruise: Subphase == Cruise
Subphase_eq_GoTo: Subphase == Go to
Subphase_eq_StopAt: Subphase == Stop at
Subphase_eq_InFlight: Subphase == In flight
Subphase_eq_Landed: Subphase == Landed

MLTL Specification

☐[0,M] (Subphase_eq_undefined ∨ Subphase_eq_TestActuators ∨ Subphase_eq_Stationary ∨ Subphase_eq_Hover ∨ Subphase_eq_Cruise ∨ Subphase_eq_GoTo ∨ Subphase_eq_StopAt ∨ Subphase_eq_InFlight ∨ Subphase_eq_Landed)

Fault Explanation

Subphase is not one of predefined strings. Can only be <undefined>, Test Actuators, Stationary, Hover, Cruise, Go to, Stop at, In flight, or Landed.

Additional Notes

Based on all possible states the UAS Subphase can enter

Figures

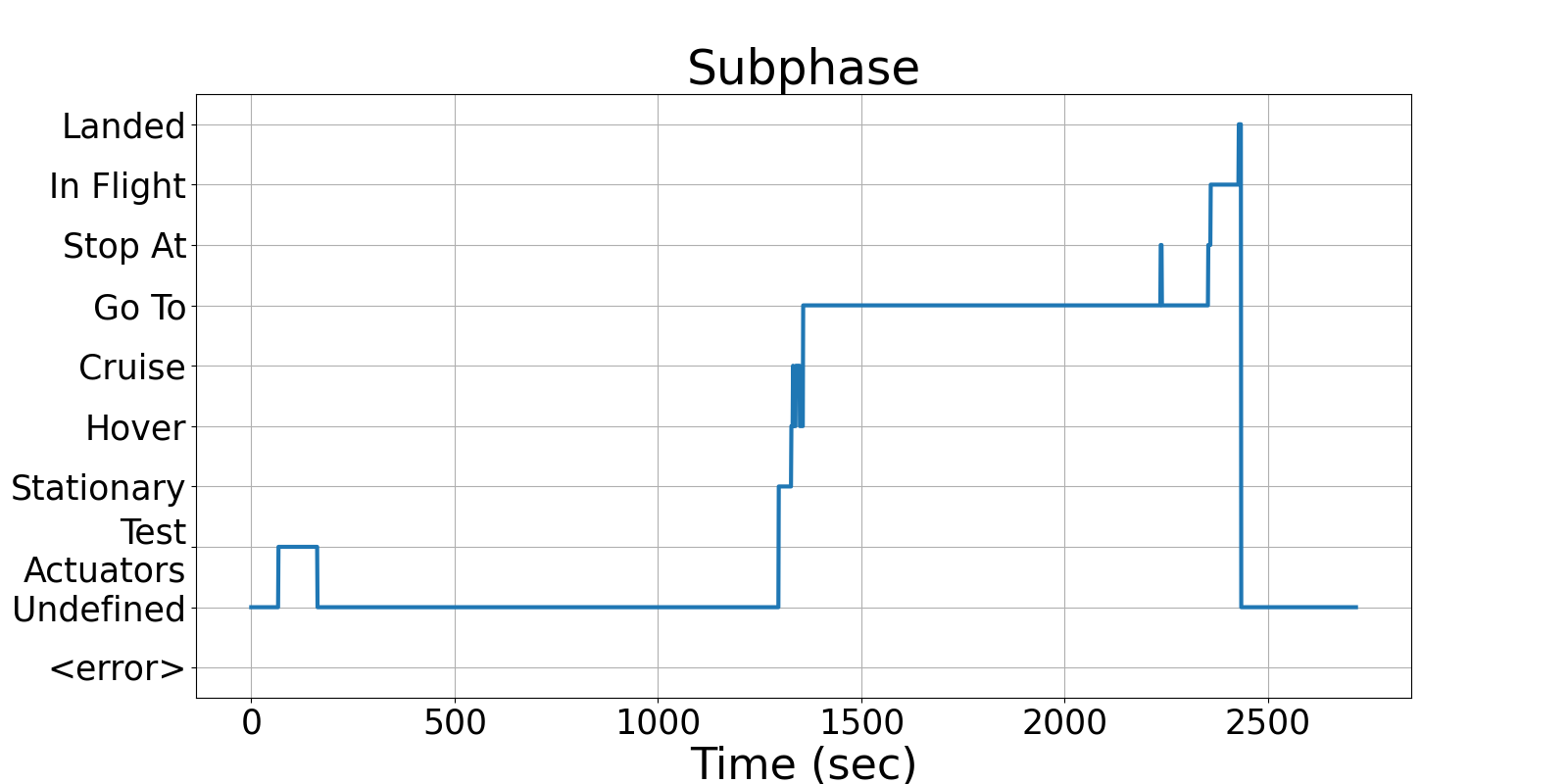

Figure 1: Graph of different Subphase strings.

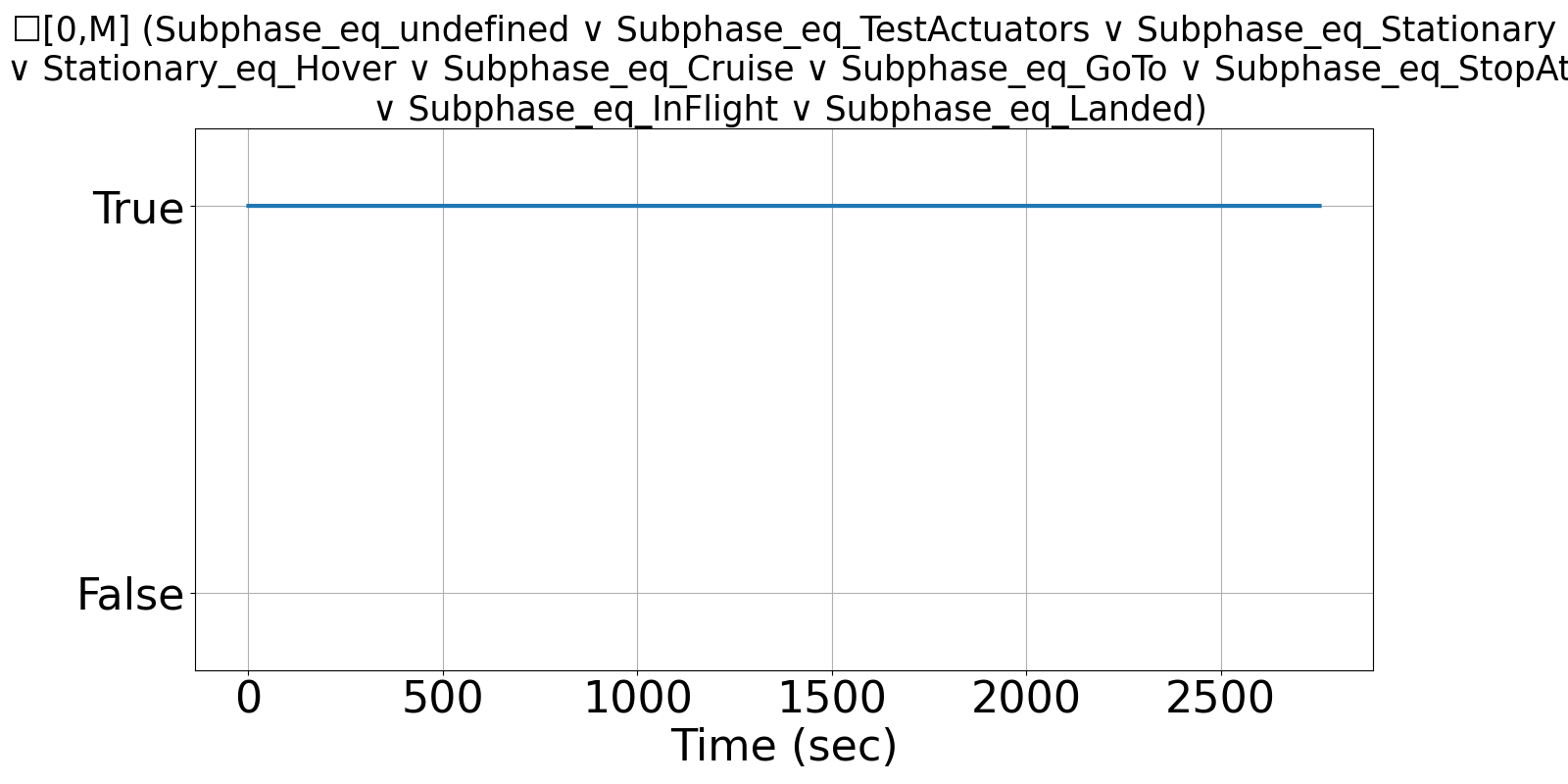

Figure 2: R2U2's output of SB_UAS_10, showing Subphase was always a predefined string.

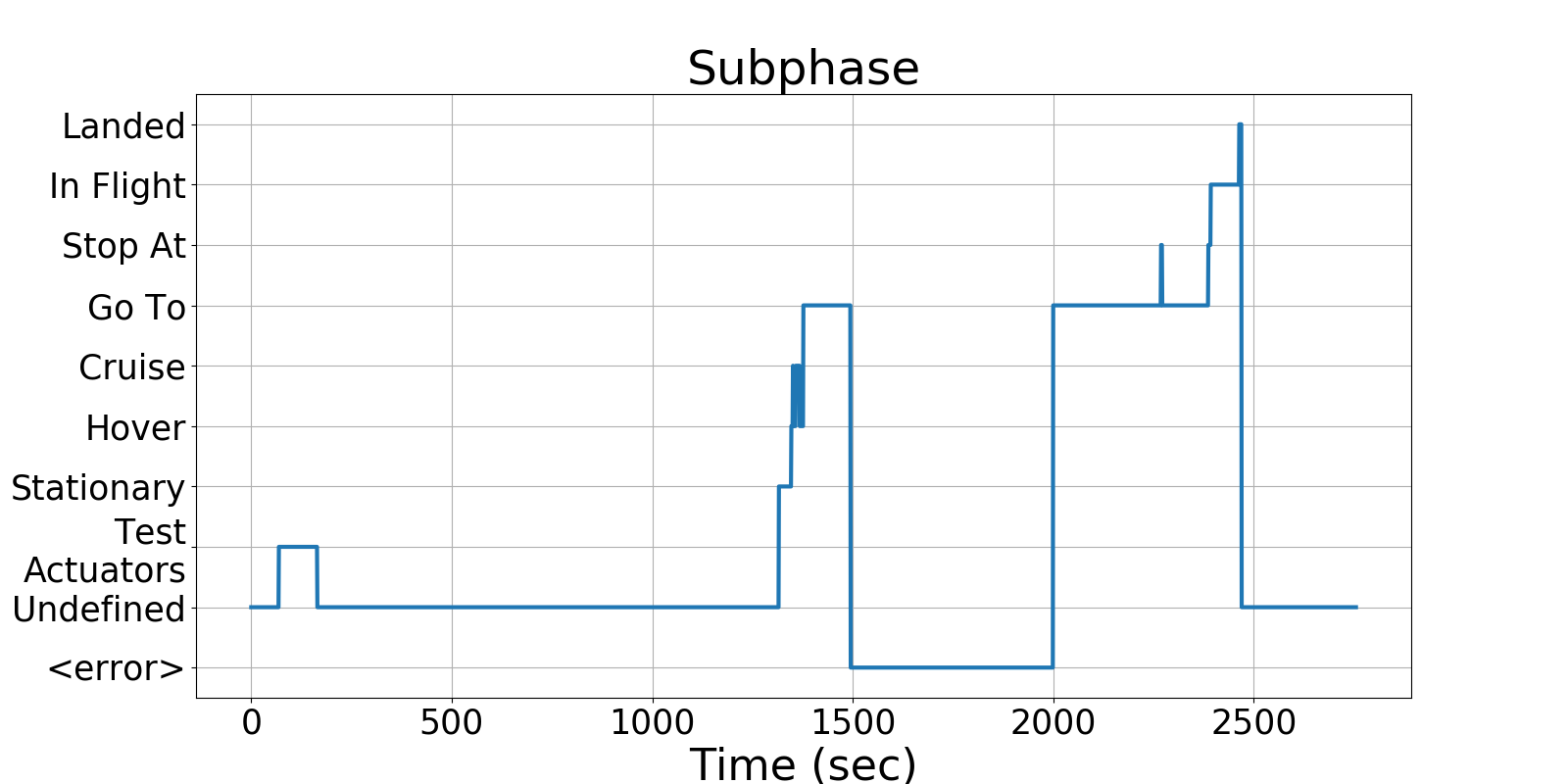

Figure 3: A fault injected, setting Subphase to "Nonexistant_String".

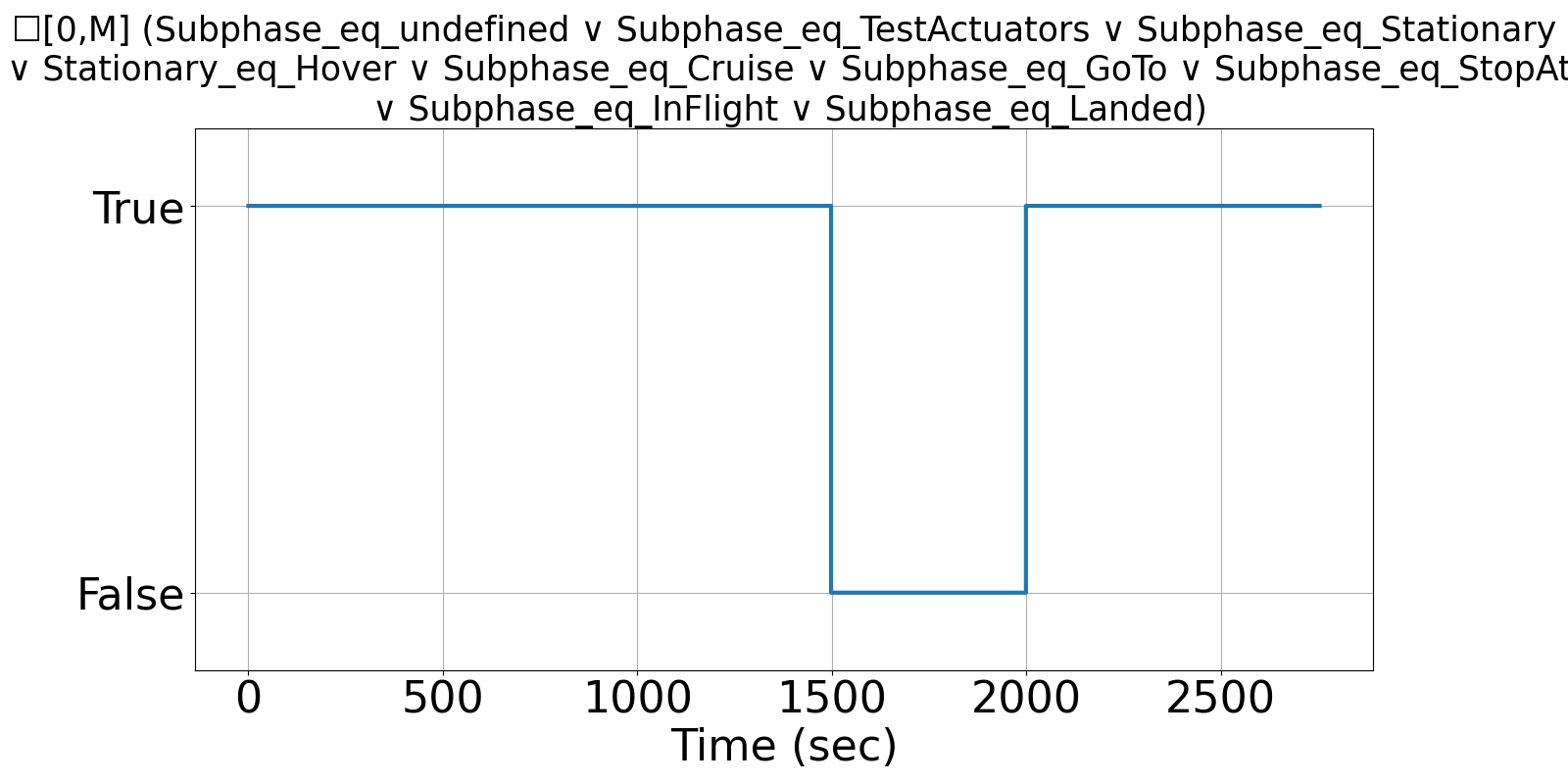

Figure 4: R2U2's output from Fig. 3, showing it was able to detect the injected fault.
