Integrating Runtime Verification into an
Automated UAS Traffic Management System

Matthew Cauwels, Abigail Hammer, Benjamin Hertz, Phillip H. Jones, Kristin Y. Rozier

This webpage contains supplementary specifications for "Integrating Runtime Verification into an
Automated UAS Traffic Management System" by M. Cauwels, A. Hammer, B. Hertz, P. H. Jones, and K. Y. Rozier

SB_UAS_11

Specification Description

The Phase of the UAS will be limited to the following strings at all instances: Ready, Test, Takeoff, Manual, Waypoints, Home, Landing

Signals Required

Phase

Boolean Conversion of Signals to Atomic Inputs

Phase_eq_Ready: Phase == Ready
Phase_eq_Test: Phase == Test
Phase_eq_Manual: Phase == Manual
Phase_eq_Waypoints: Phase == Waypoints
Phase_eq_Home: Phase == Home
Phase_eq_Landing: Phase == Landing

MLTL Specification

☐[0,M] (Phase_eq_Ready ∨ Phase_eq_Test ∨ Phase_eq_Manual ∨ Phase_eq_Waypoints∨ Phase_eq_Home ∨ Phase_eq_Landing)

Fault Explanation

Phase is not one of predefined strings. Can only be Ready, Test, Manual, Waypoints, Home, or Landing

Additional Notes

Based on all possible states the UAS Phase can enter

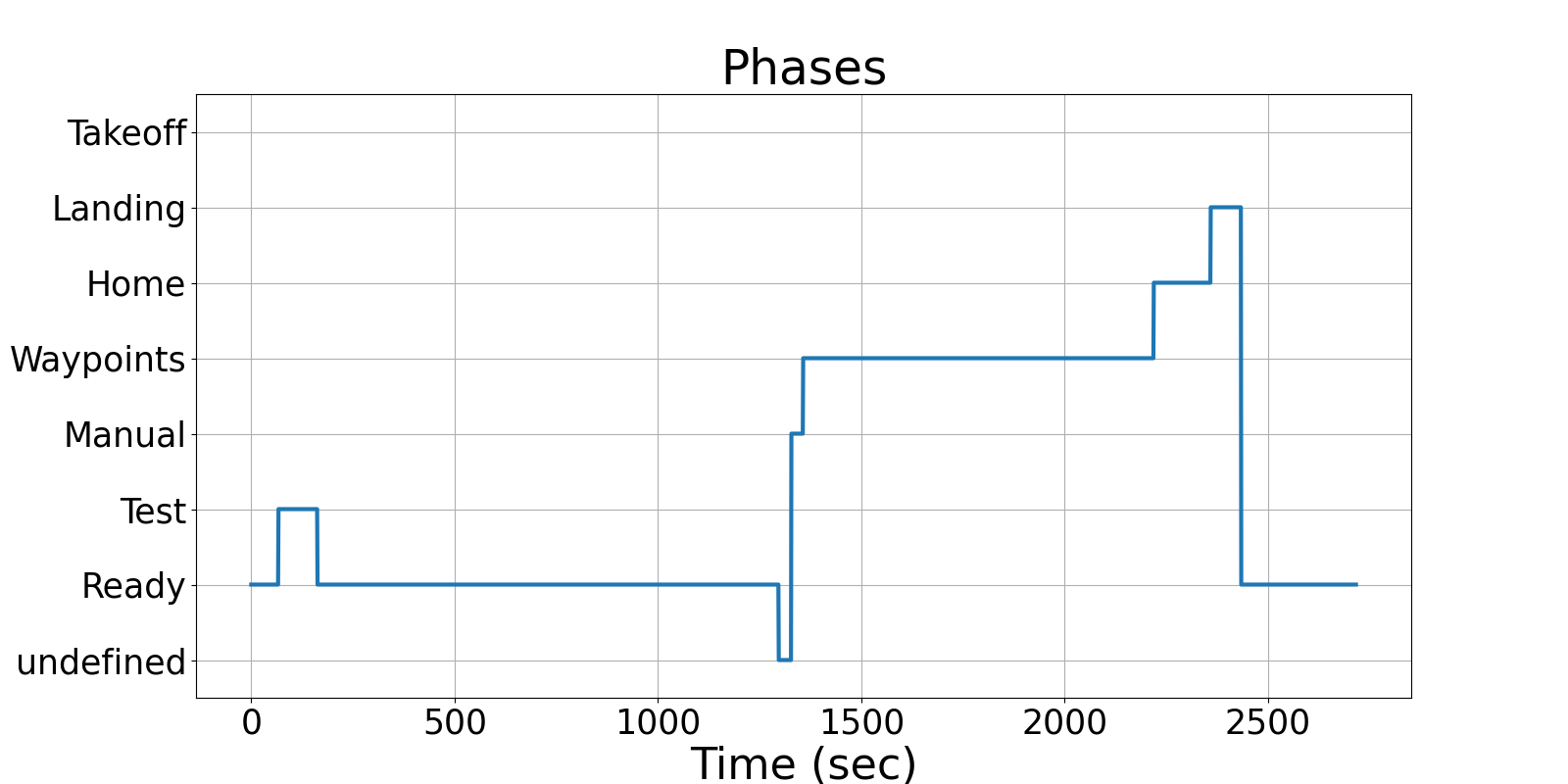

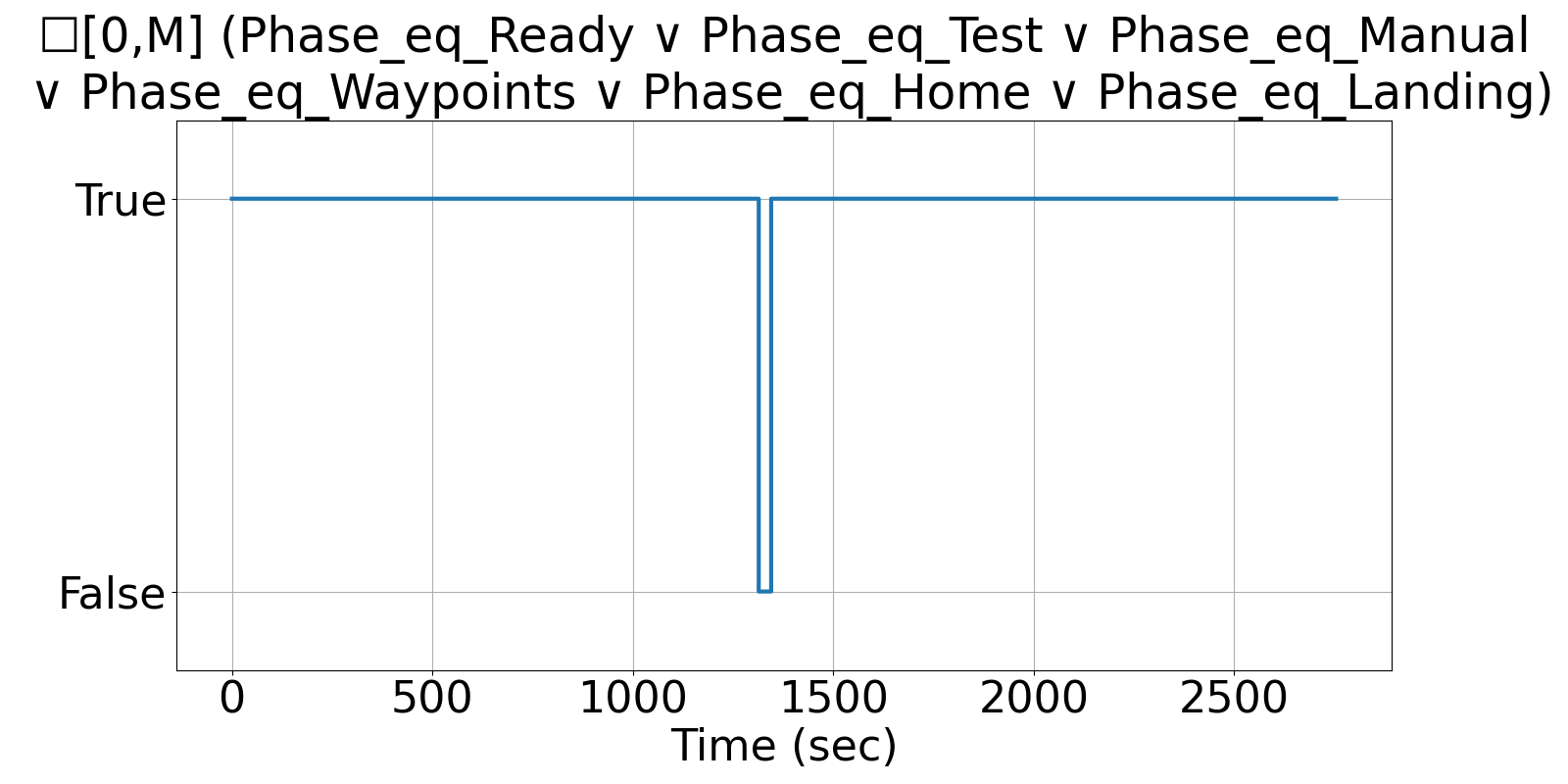

Figures
